Wall, sheet pile and shoring adapters
Simple setup with manual mechanical clamping
Fits walls from 51 to 267 mm thick
Supports up to 164 kg, compliant with ANSI/CSA/OSHA/CE standards
Tool-free assembly in under 3 minutes
The Xtirpa™ IN-8018 is a versatile confined space entry and fall protection system designed for temporary anchorage on structural walls, sheet piles, or trench shoring panels.
It provides a secure and stable connection point for a davit arm (610 mm reach) without requiring drilling or permanent installation—ideal for environments where infrastructure integrity must be preserved.
Thanks to its adjustable wall clamp design, the IN-8018 adapts to wall or structure thicknesses ranging from 51 mm to 267 mm (2”–10.5”).
Its mechanical tightening mechanism ensures fast, tool-free installation and removal, providing a solid anchorage even on uneven or coated surfaces.

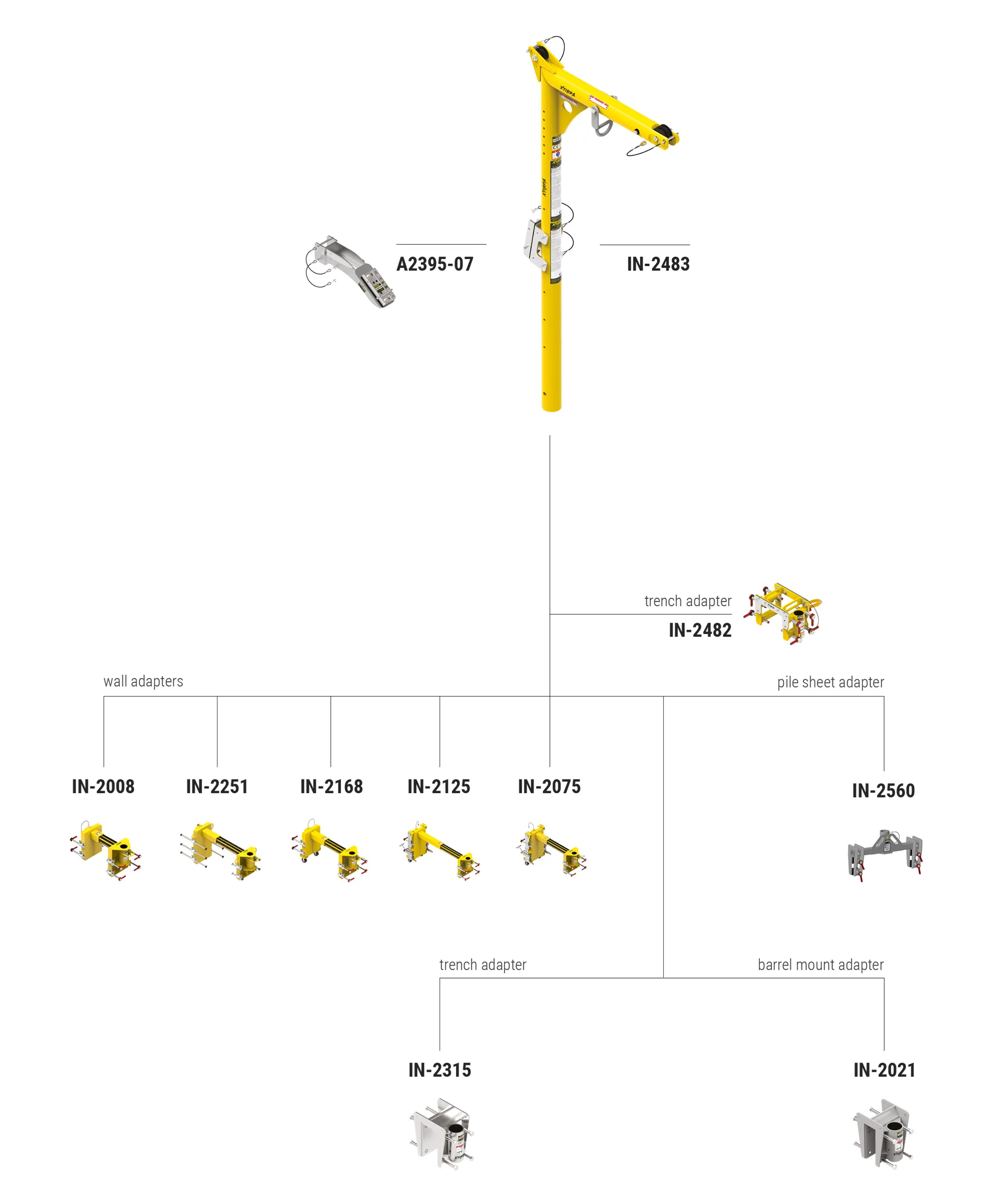

Different adapter options, such as sheet-pile and shoring mounts, extend its usability across multiple confined space access scenarios, from vertical entry pits to temporary trench setups.
The IN-8018 system can be installed in under three minutes by a single operator.
Ergonomic clamping handles and integrated locking pins make setup and removal simple and efficient.
Built from lightweight 6061-T6 aluminum, the system offers excellent strength-to-weight performance, allowing easy transport between job sites.
Fully compatible with the Xtirpa™ IN-2477 winch, powered personnel winches, and various SRL models, the IN-8018 allows flexible rescue and retrieval configurations.
Dedicated brackets ensure secure mounting and optimal alignment for vertical or angled entry operations.
The IN-8018 is tested and certified to the highest international safety standards, including EN 795 Type B, CEN/TS 16415 (2 persons), ANSI Z359.1, CSA Z259.2.1, and OSHA 1910.66.
With a Safe Working Load (WLL) of 164 kg (360 lb) and a minimum breaking strength of 13 kN (2,923 lbf), it provides a dependable anchorage point for fall arrest, retrieval, and personnel positioning applications.
Standards
ANSI Z359.18 Type D
AS/NZS 5532
CSA Z259.2.1
OSHA 1910.66
EN795 – Type B
TS 16415
Material
6061-T6 Aluminum (mast / davit arm)
Stainless Steel 304 / 316 or Galvanized Steel 44 W / 50 W (adapters, hardware)
Acetal pulleys
Safe Working Load (WLL)
164 kg (360 lb) per user
Maximum: 2 users simultaneous
Breaking Strength (MBS)
13 kN (2,923 lbf)
Dimensions & Weight
Davit Arm (reach 24″ / 610 mm): ≈ 23 kg
Adapter / Clamp Assembly: ≈ 23 kg
Total (depending on adapter): ≈ 46 kg
System Configuration
Adjustable Wall Clamp Adapter or Low-Wall / Sheet-Pile / Shoring Mounts
Quick, drill-free installation via mechanical tightening
Tool-free assembly and disassembly
Performance & Application
