Easily adjust working height by adding or removing mast sections for precise, fixed vertical anchorage.
Tested to 22 kN and compliant with ANSI, OSHA, CSA, and EN standards for reliable fall protection.
The rotating mast design allows full circular movement, ensuring optimal alignment for workers operations.
Provides a certified, secure anchorage point for work at height, combining stability, control, and compliance in every configuration.

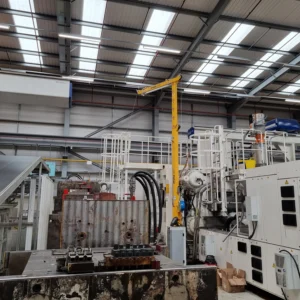

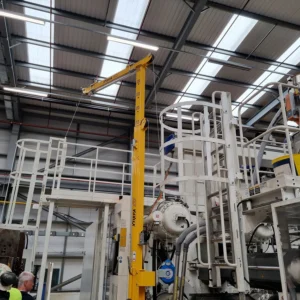

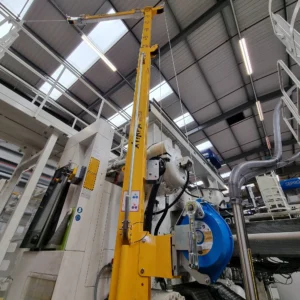

The XTIRPA™ IN-8020, also referenced as part number IN-5039, is a modular aluminum davit arm engineered specifically for work at height applications, providing a secure and compliant anchorage point for fall protection and rescue operations.
The system features an adjustable davit arm designed to offer controlled reach over the working area, allowing users to position the anchorage point precisely according to site requirements. Its height-adjustable mast enables adaptation to varying working heights and structural constraints, ensuring optimal alignment and safe load transfer during use.

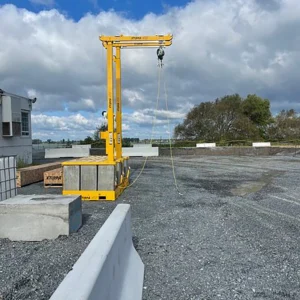

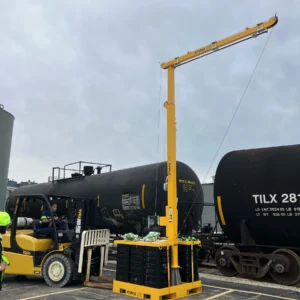

A defined rescue plan is integrated into the system design, allowing fall arrest situations to be managed safely when used with compatible rescue and retrieval devices. The IN-8020 can be configured with an optional underslung rail, providing smooth horizontal movement and improved user positioning during work-at-height tasks. An optional counterweight cart is also available, facilitating safe relocation and simplifying handling when counterweight-based installation is required.

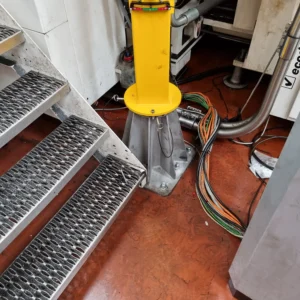

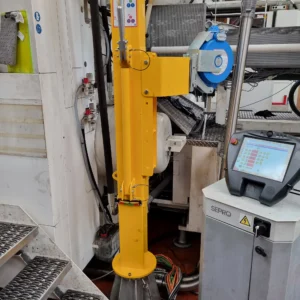

For fixed or semi-permanent installations, the system can be mounted on a floor adapter or a flush base adapter, offering flexibility to suit different site layouts and structural conditions.
Manufactured from high-strength steel, the XTIRPA™ IN-8020 combines durability with ease of handling. Designed to integrate seamlessly with personal fall arrest systems, self-retracting lifelines, and rescue devices, it delivers a versatile and reliable solution for elevated work environments where adaptability, safety, and performance are essential.
Standards
ANSI Z359.18 Type D
AS/NZS 5532 FREEFALL
CSA Z259.15 CLASS AD
OSHA 1910.140/1926.502
EN795 – Type A (fixed config.)
EN795 – Type E (counterweight config.)
TS 16415
Material
Steel
Application type
Work at height anchorage and rescue system
Reach adjustment
4.6m (15ft) x 7.6m (25ft) x 1,8m (6ft)
Adjustable height min. 187″ – 4,7 m / max. 304″ – 7,7 m
Height adjustment
Height-adjustable mast to adapt to different working heights and site constraints
Rescue capability
Designed to support a defined rescue plan when used with compatible rescue devices

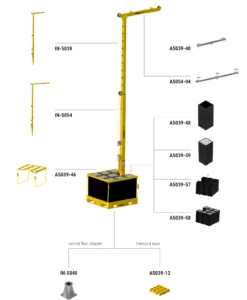

Installation options
Floor adapter (part n. IN-5040)
Flush base adapter (Part n. IN-5061)

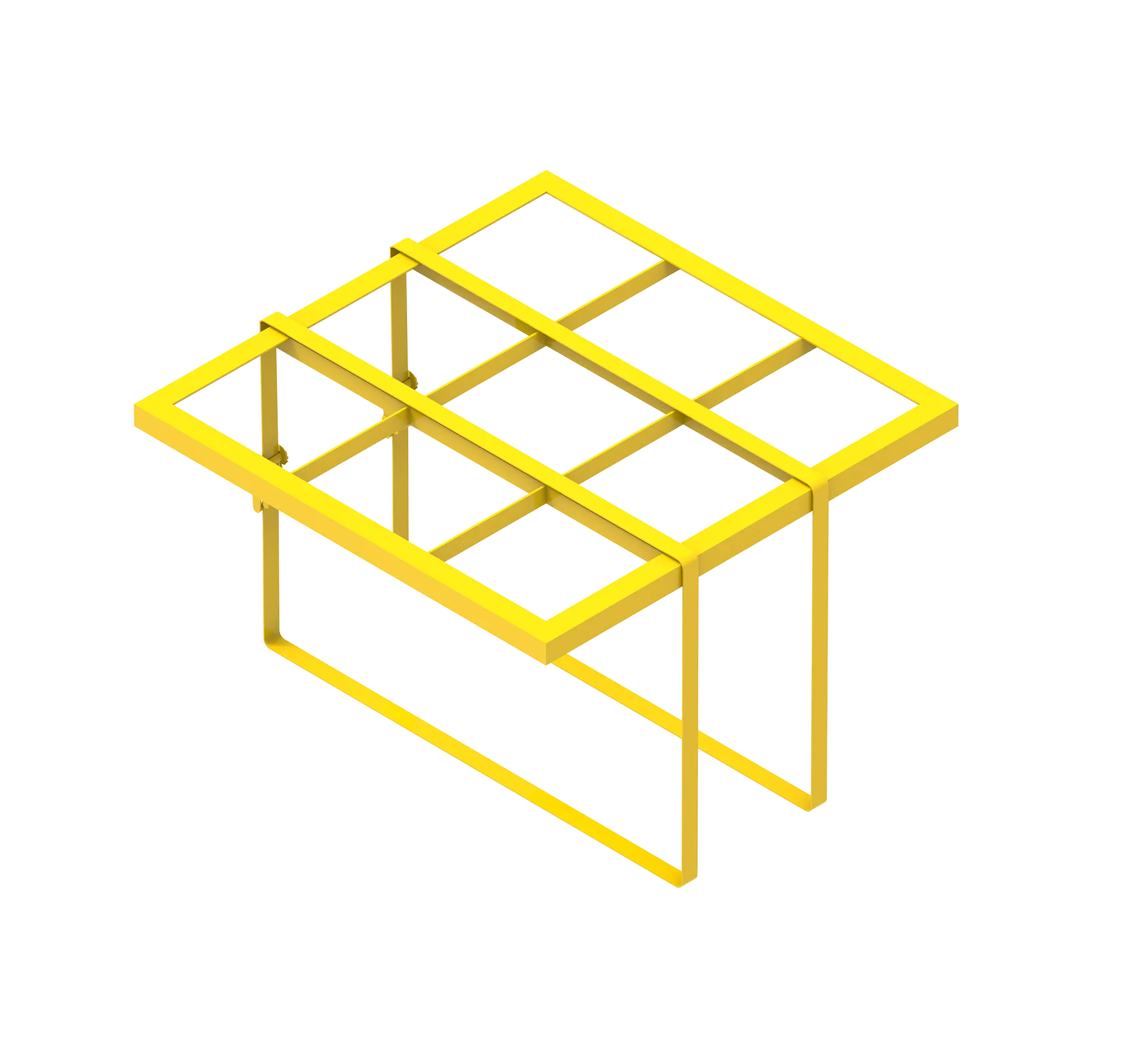

Counterweight system with optional cart
Optional configurations
Underslung rail for horizontal movement
