Complies with ANSI, OSHA, EN 795, and CEN/TS 16415 standards.
Adjustable reach from 762 to 1219 mm and adjustable clamp from 10" / 25 cm - 17 " / 43 cm
The davit arm and mast can be used in combination with a wide range of adapters.
One person can install the system without tools in just a few minutes.

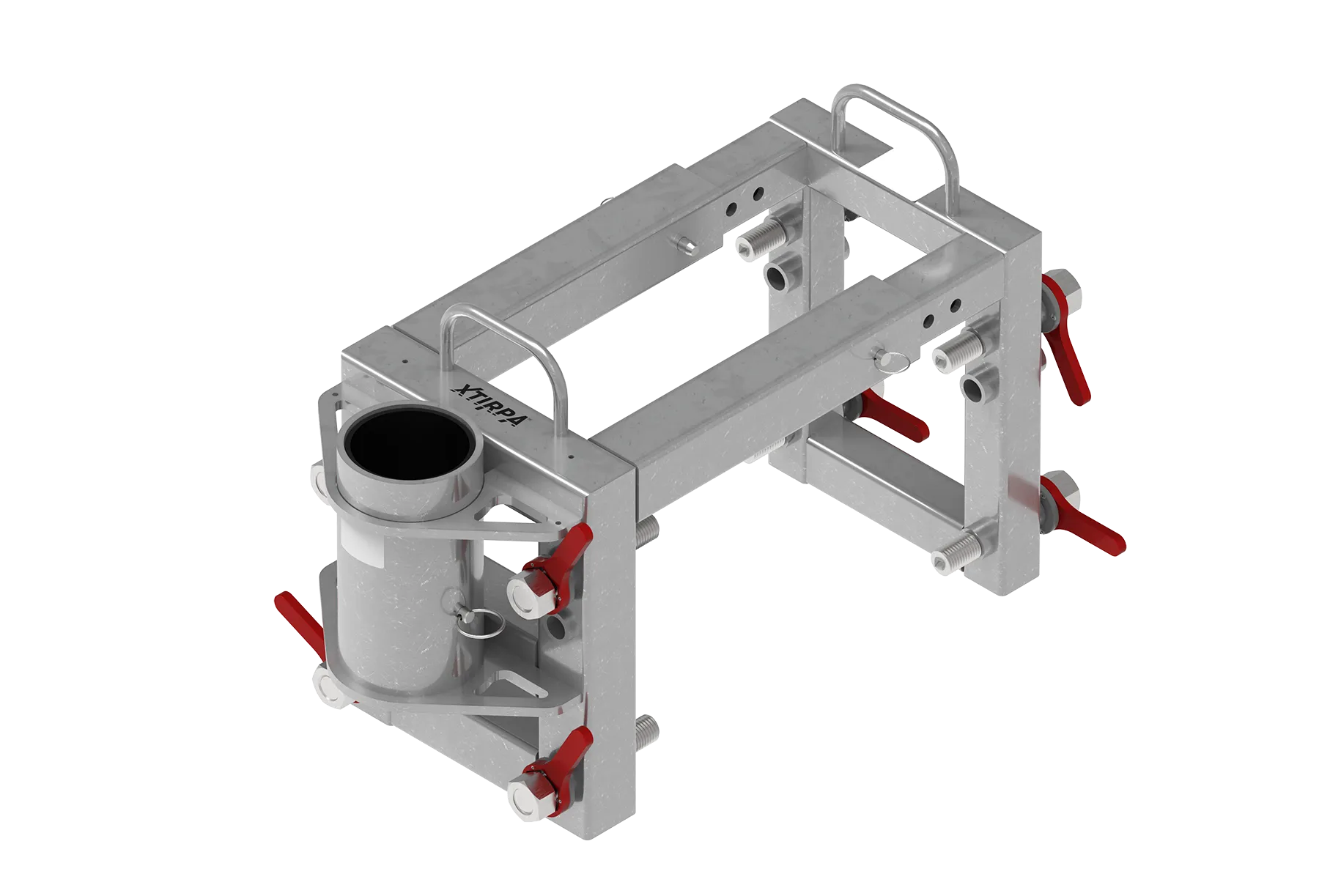

Adjustable Clamping Solution

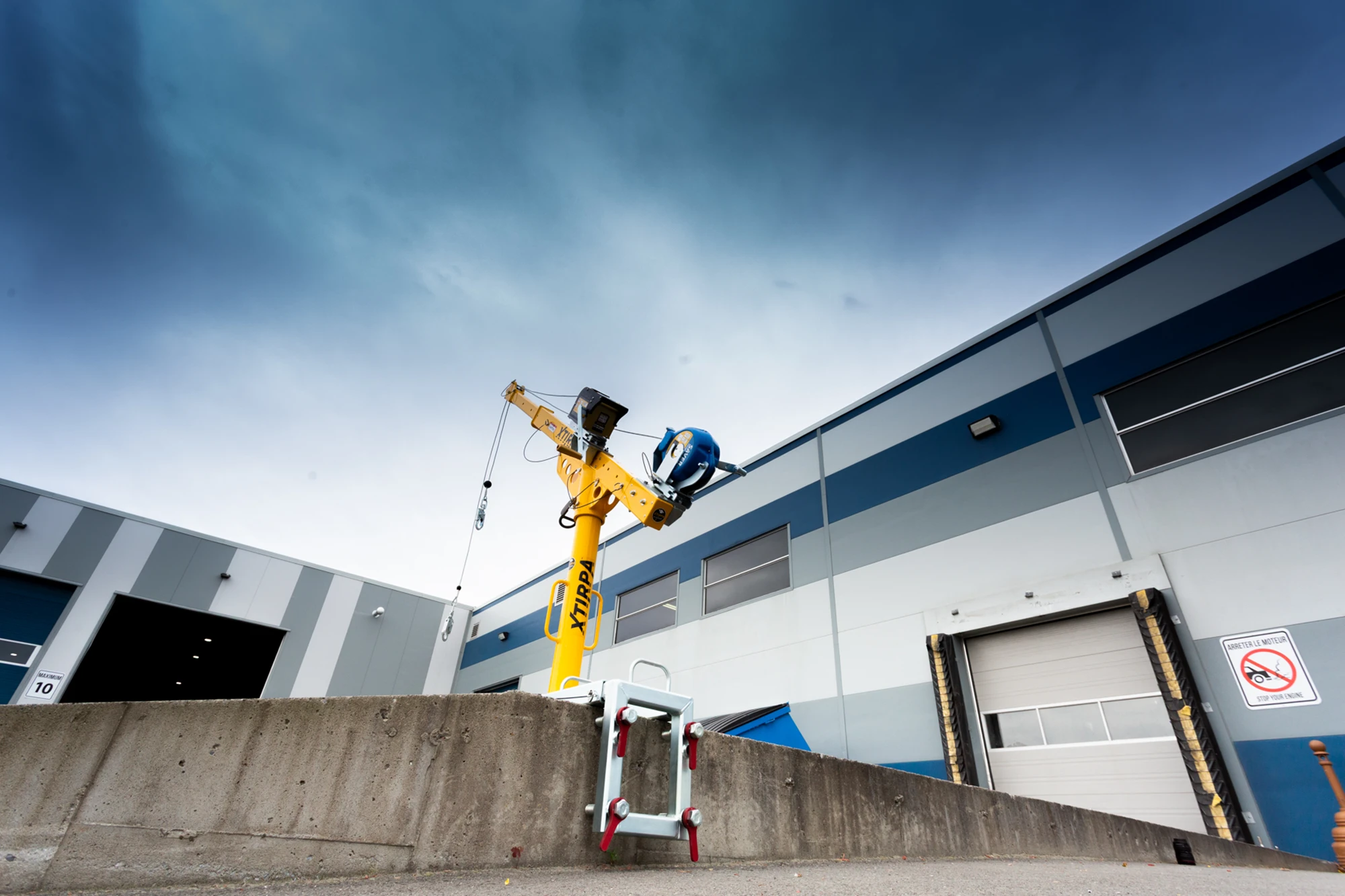

The IN-8015 is a modular davit arm system equipped with an adjustable clamping adapter, designed to provide safe access and rescue anchorage where permanent installation is not possible.

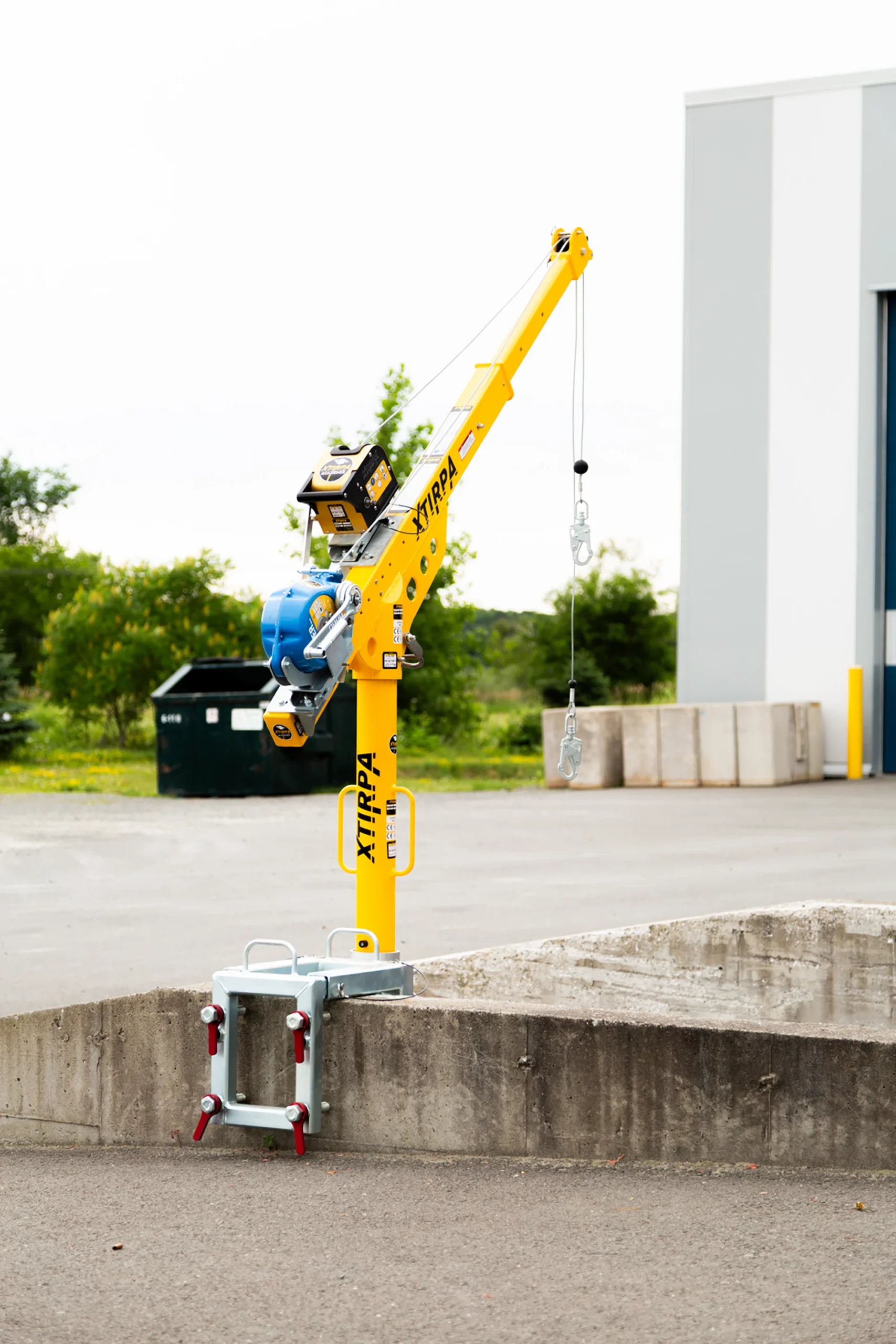

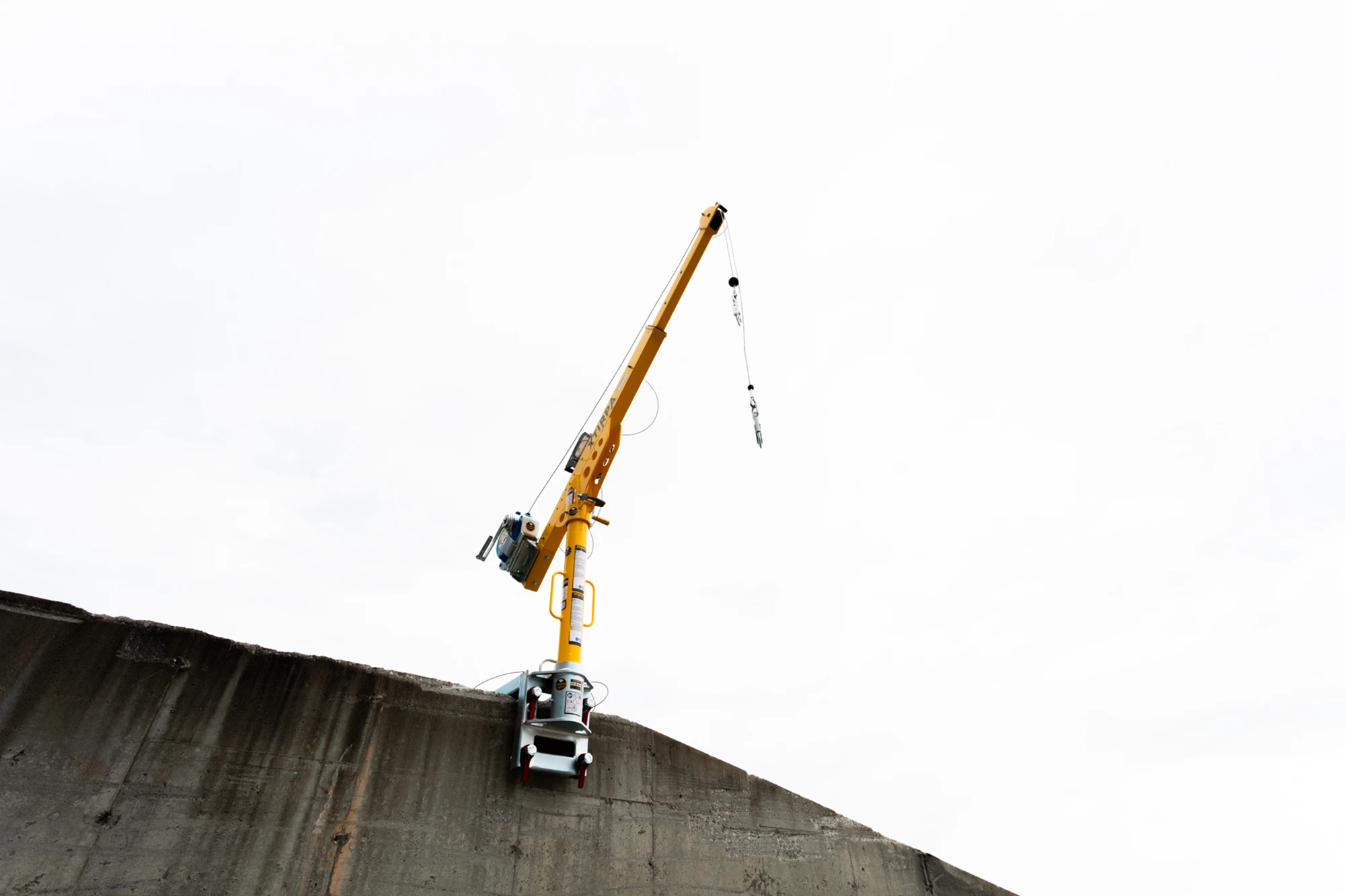

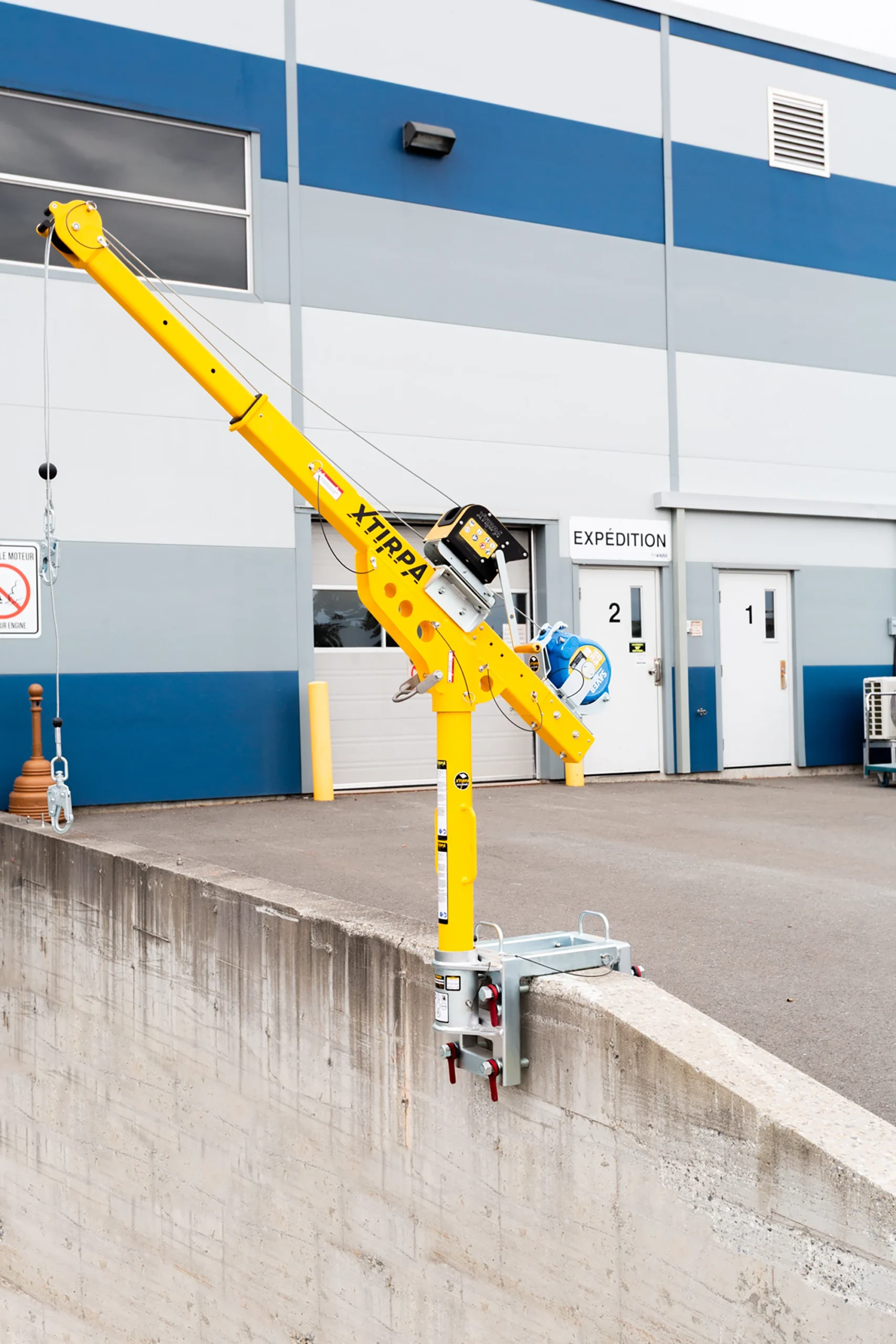

Its clamping mechanism allows the system to be securely fixed to structural walls, sheet piles, or trench shoring panels, making it well suited for temporary confined space operations.
Clamp-Based Anchorage Without Drilling
The IN-8015 system combines a davit arm, vertical mast, and an adjustable mechanical clamp adapter.
This configuration allows installation directly onto structural elements without drilling or modifying the supporting surface, preserving infrastructure integrity.
The system is typically used for vertical access in pits, trenches, and below-grade structures where fixed anchors are unavailable or prohibited.
Modular Mast and Davit Configuration
The mast and davit arm rotate freely during operation, allowing flexible positioning for entry and rescue.
The modular construction enables easy handling and transport of individual components, supporting deployment across multiple work locations.
SRL / Winch Compatibility
The IN-8015 is designed to accept a range of fall arrest and rescue devices.
It is compatible with Xtirpa™ winches, including the IN-2477, as well as multiple SRL models through dedicated mounting brackets.
This compatibility allows the system to be configured for fall arrest, retrieval, or rescue operations depending on site requirements.
Certified Anchorage Performance
The system provides a certified anchorage point suitable for confined space entry and rescue applications.
It complies with applicable ANSI, OSHA, CSA, and EN standards and supports multi-user configurations in accordance with CEN/TS 16415, when used as specified.
Fast, Tool-Free Installation
One of the key advantages of the IN-8015 is its rapid installation.

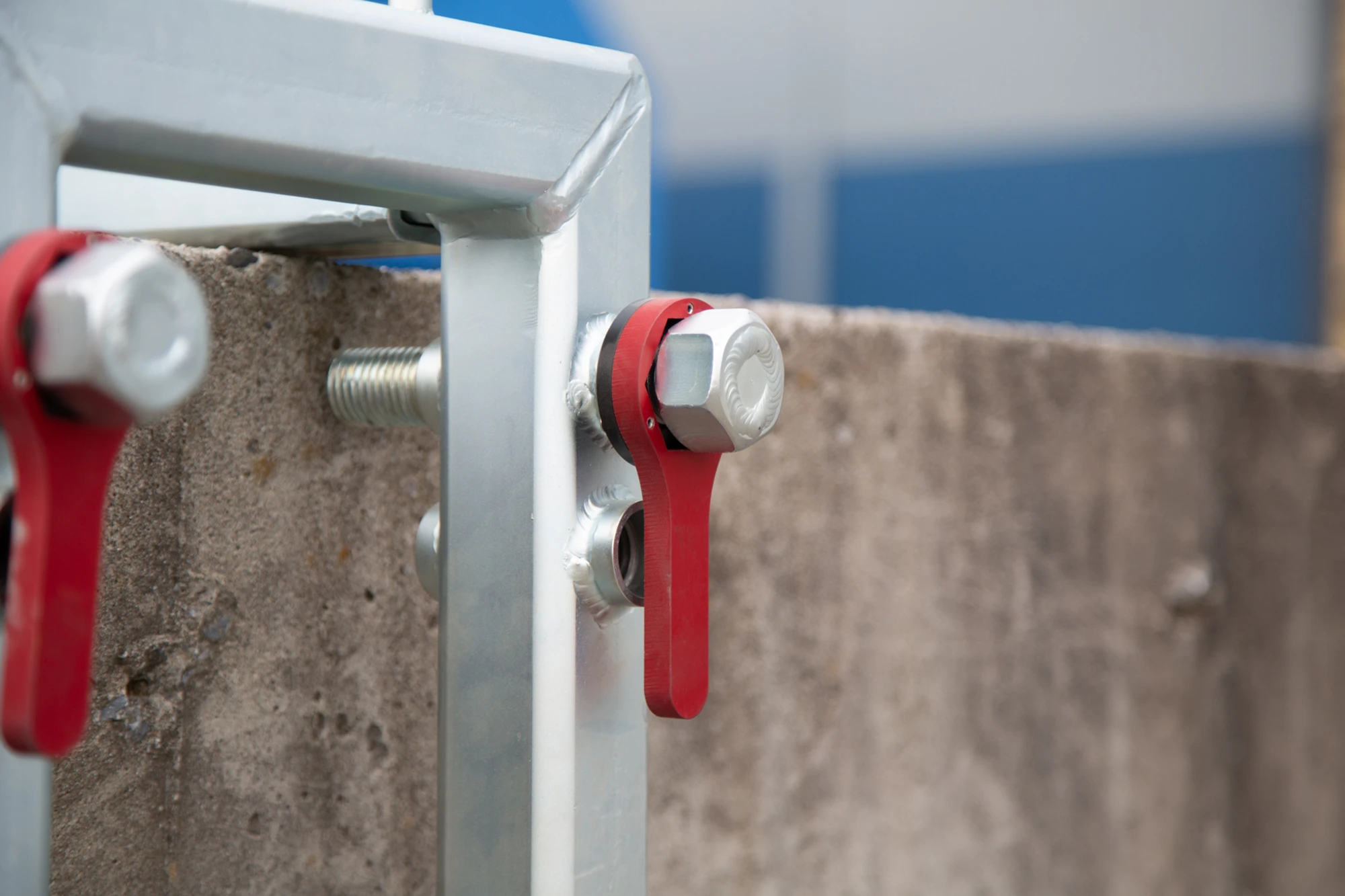

The clamp is manually positioned and tightened, after which the mast and davit arm are secured using locking pins. No power tools are required, enabling quick setup and removal by trained personnel.
Standards
ANSI Z359.18 Type D
AS/NZS 5532 FREEFALL
CSA Z259.15 CLASS AD
OSHA 1910.140/1926.502
EN795 – Type B
TS 16415
Material
Aluminum
Safe Working Load (WLL)
164 kg (360 lb)
Adjustable Height
From 1892 mm to 2242 mm
Weight
Davit arm: 50lb / 23 kg
Mast: 42lb / 10.4 kg
Clamp: 106.5 Lb / 48.3 Kg
