Mast, Davit arm 2400 mm
The davit arm (10 kg) and the T-base (4 kg) are easy for one person to handle.
Specifically designed for horizontal access at various heights.
The anchor point at the head of the arm can be connected to different mobile anchorage solutions.
Tool-free assembly, secured with safety pins.

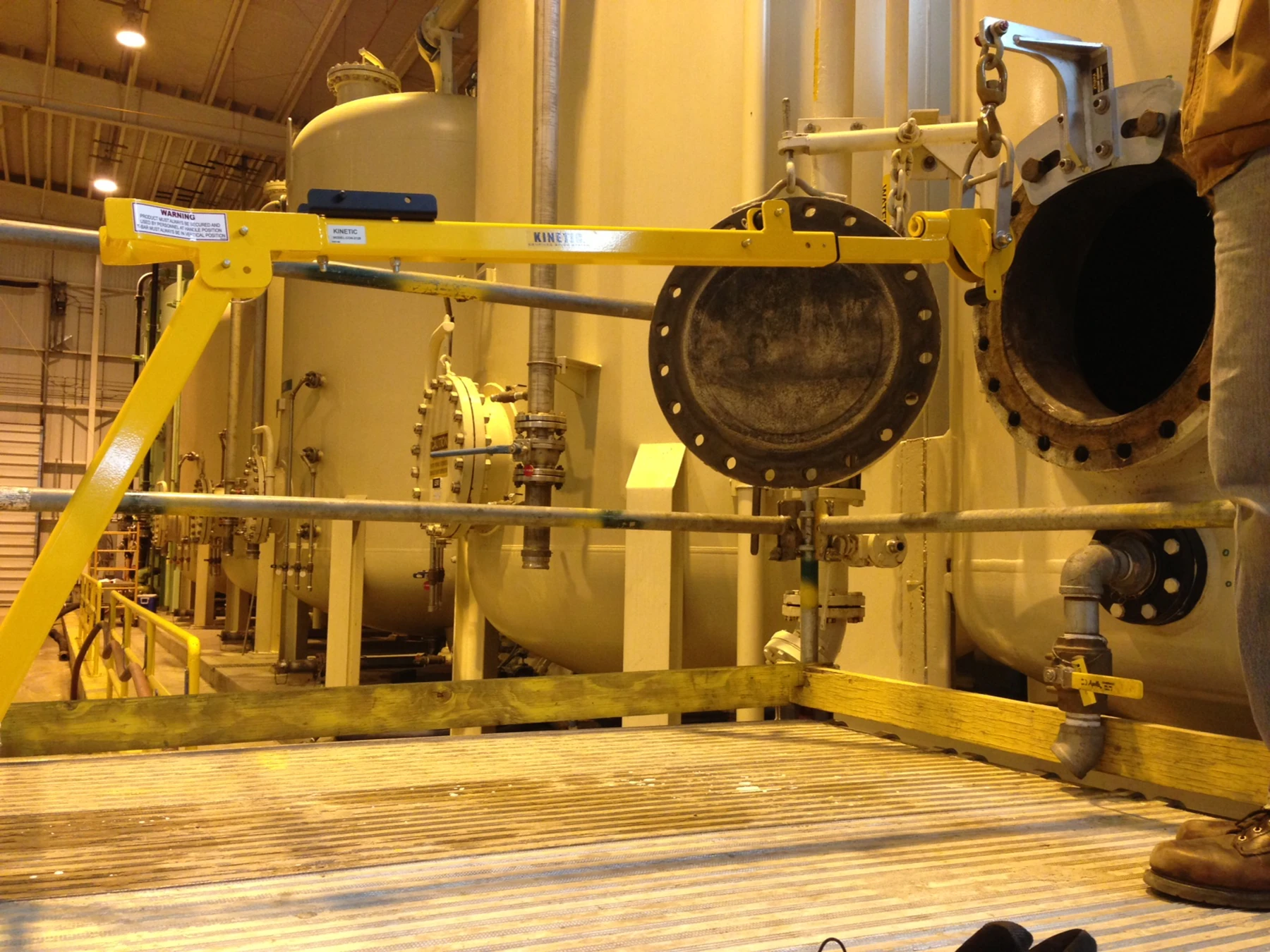

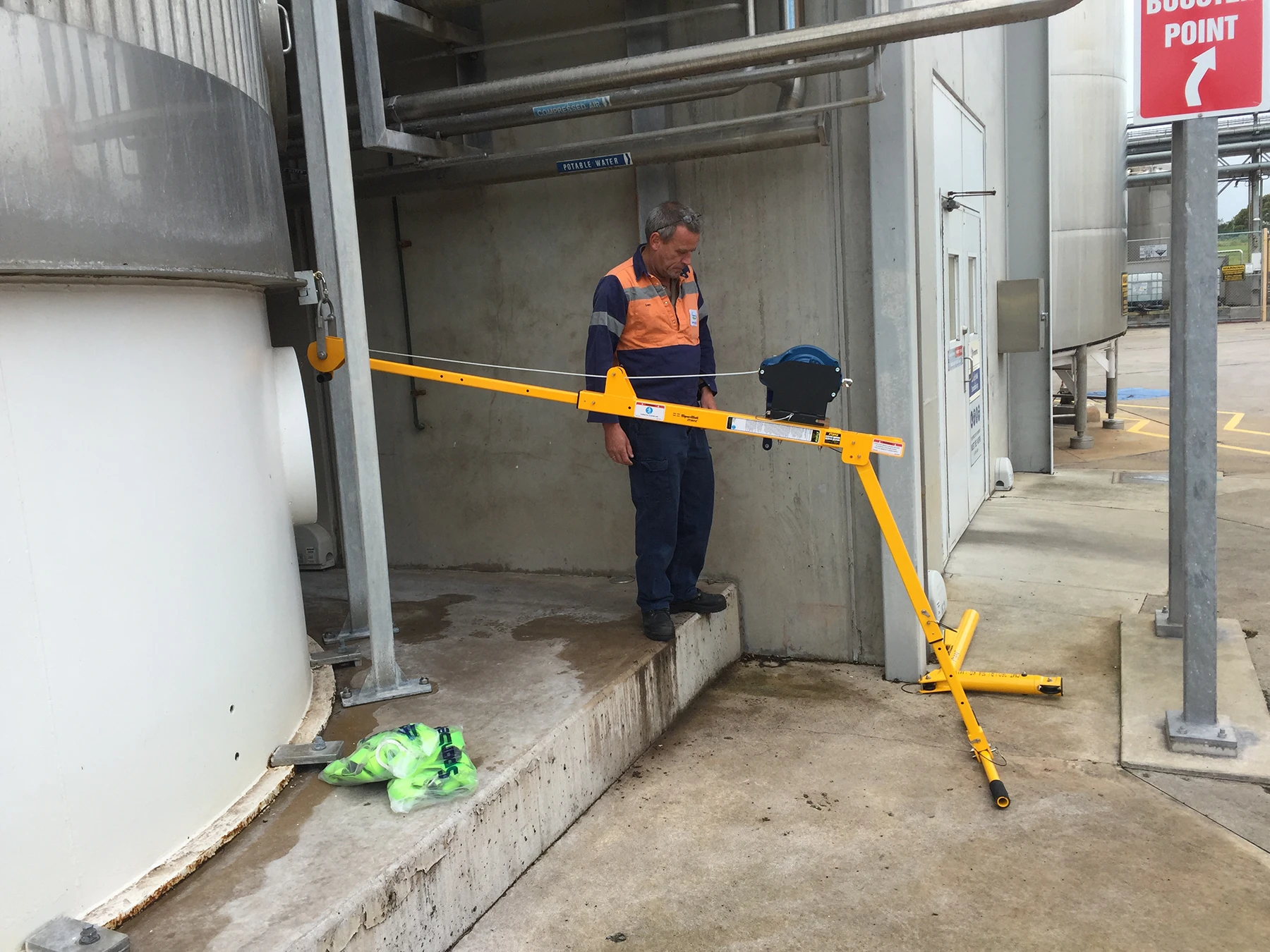

Designed for Lateral Access

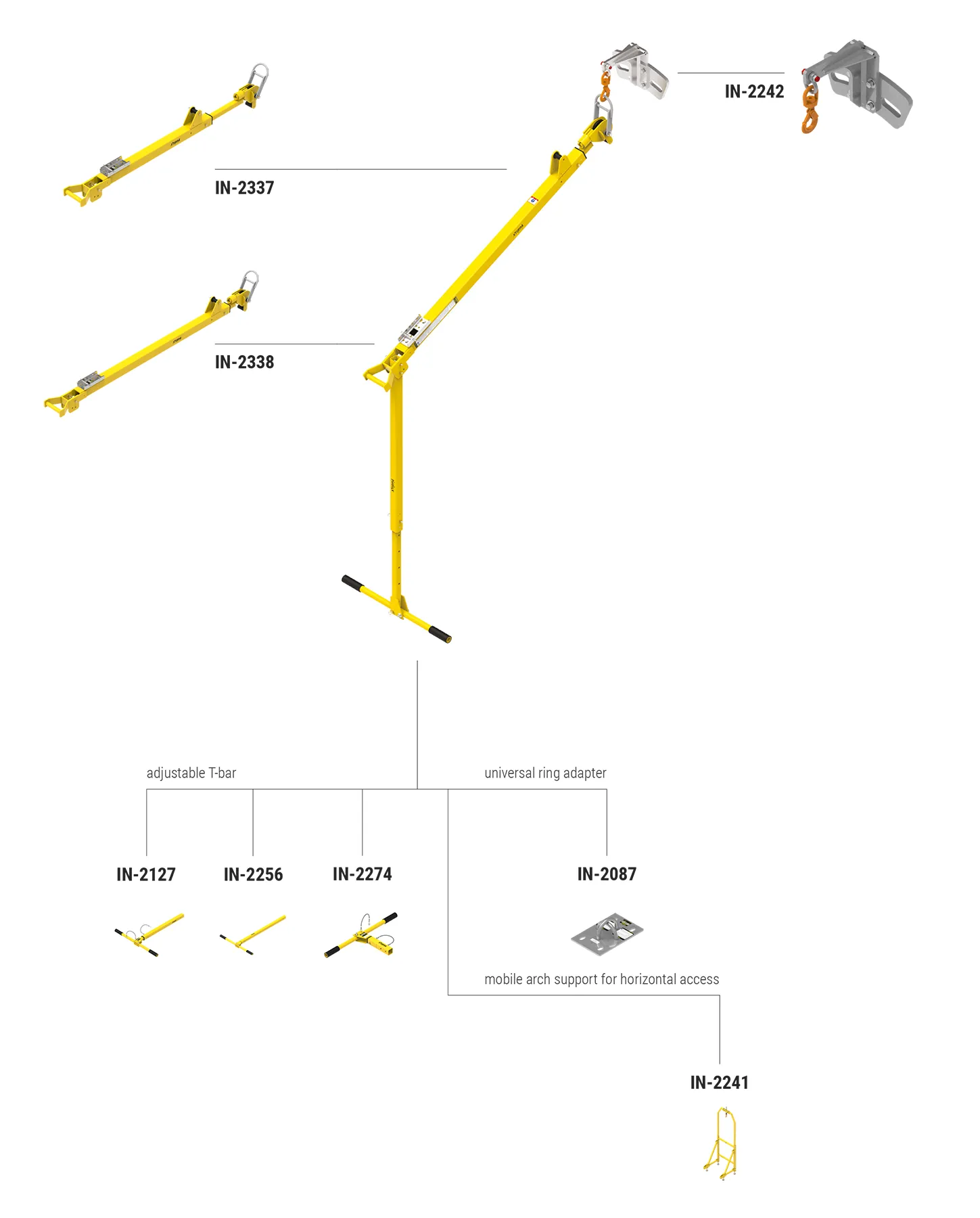

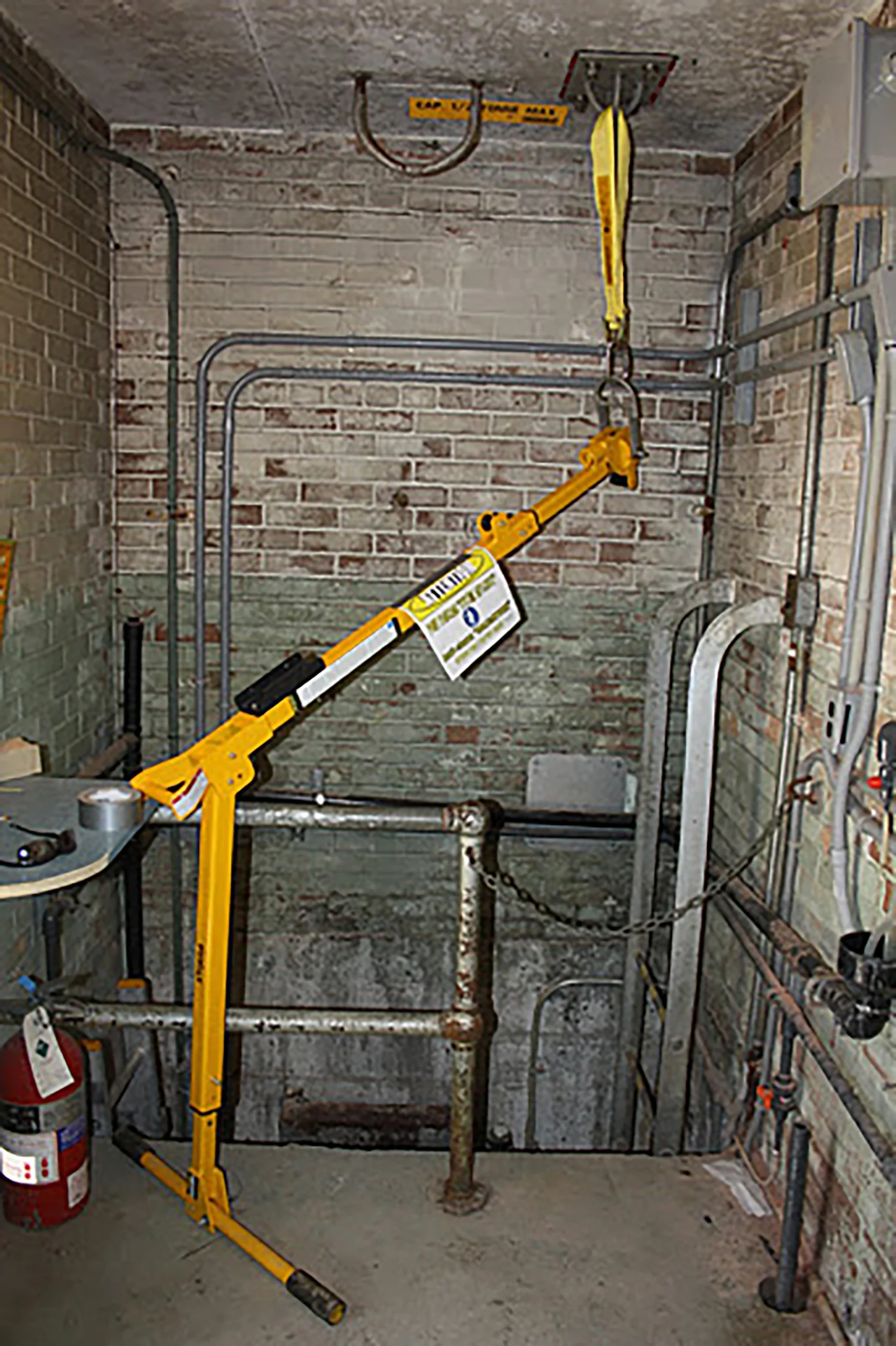

The IN-8008 is a lightweight, modular system designed for horizontal access in small spaces such as silos, tanks, or manholes. It can be equipped with IN-2337 (1,219–1,829 mm) or IN-2338 (1,440–2,586 mm) telescopic masts for various location setups. Adjustable T-feet can also be added for improved stability during horizontal or semi-vertical use.
Certified Safety
The system is designed for a safe working load up to 164 kg and has a minimum breaking strength of 16 kN, complying with EN, OSHA, ANSI, and CSA standards. Certified for up to two persons under CEN/TS 16415.
Versatility

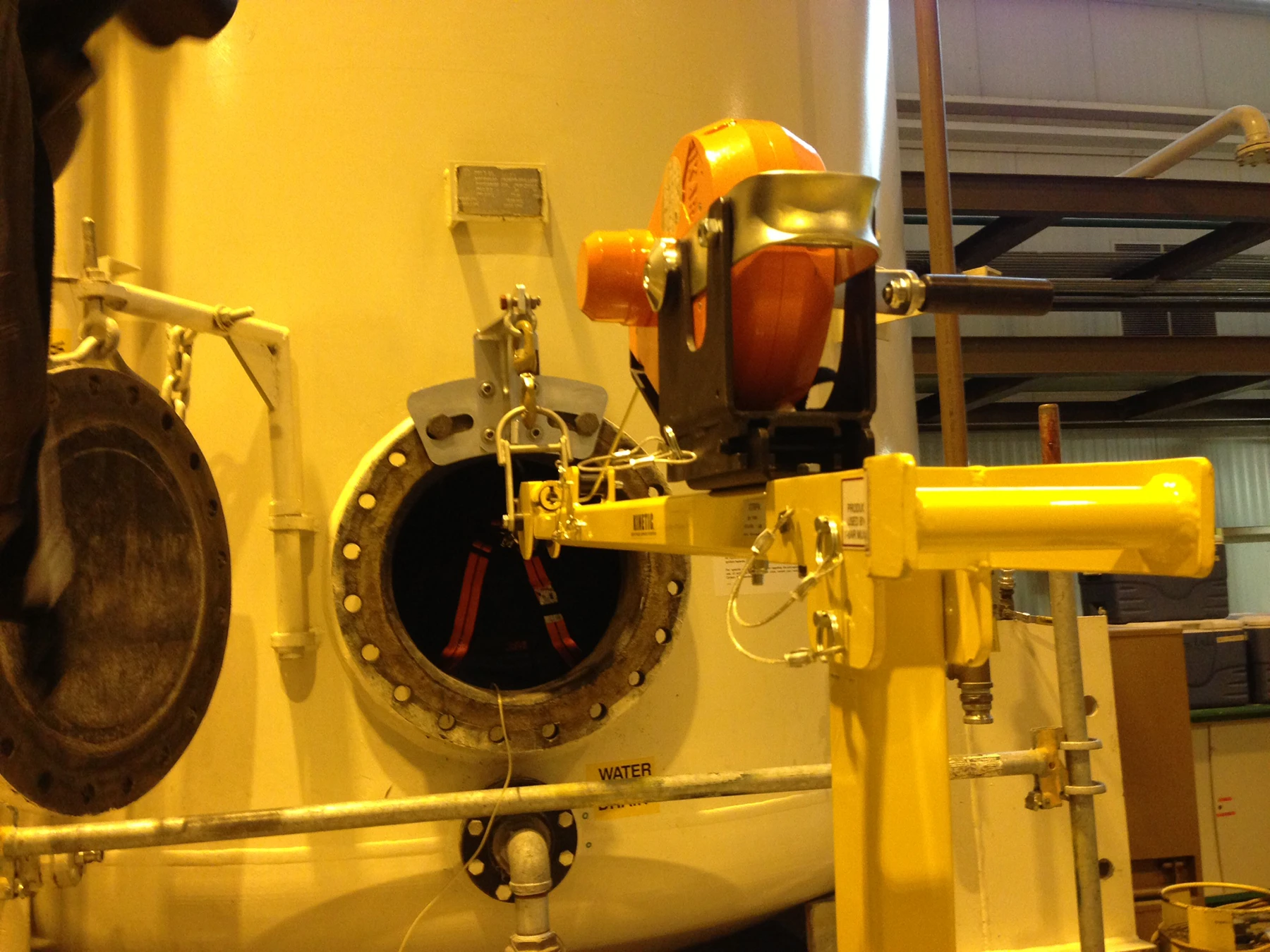

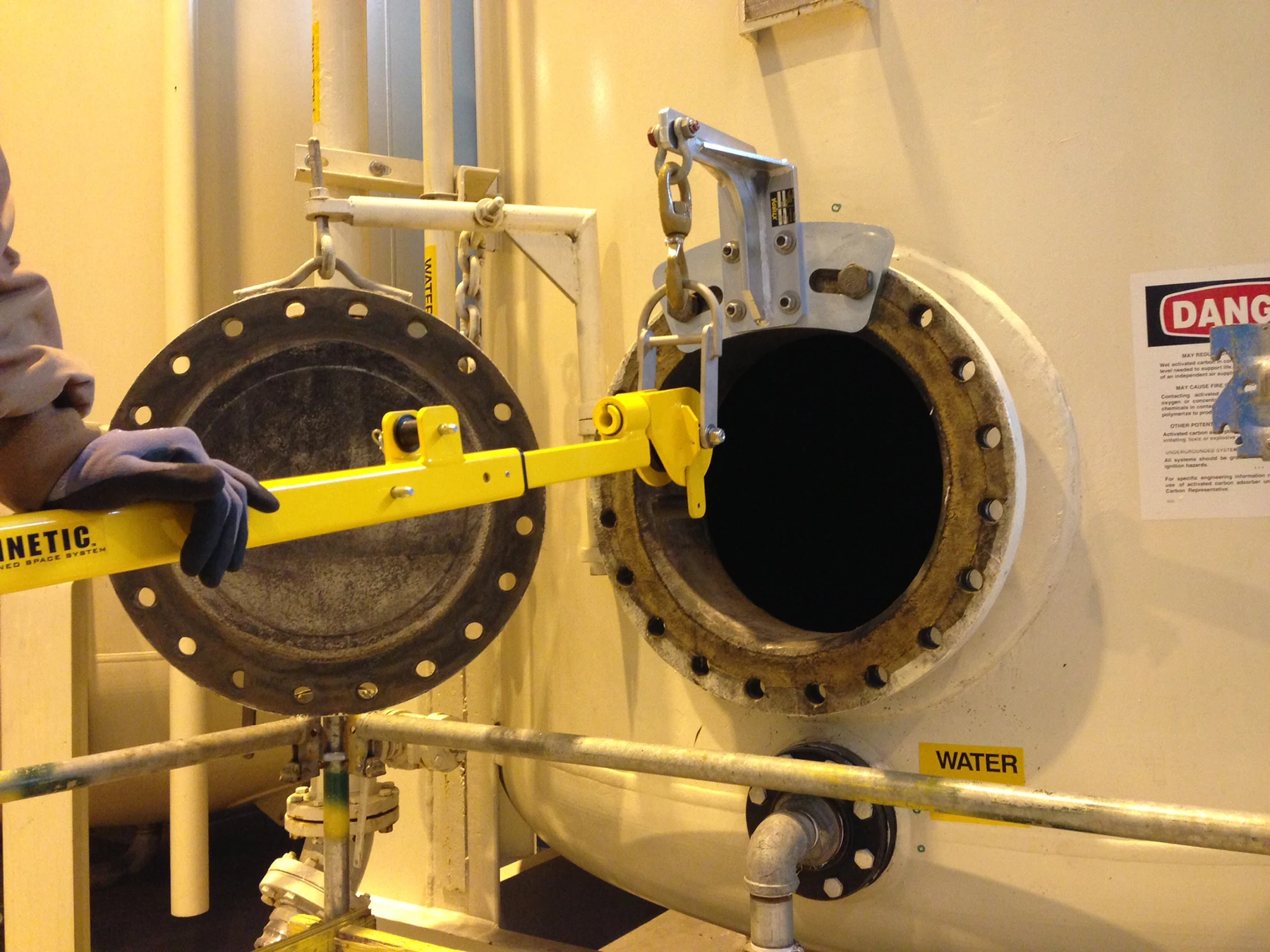

If the manhole has a collar, the anchor point at the head of the arm can be attached to flange adapter IN-2242, which mounts to the manhole collar. If the tank is not structurally suitable for the flange adapter, an anchor point can be created using support IN-2241 on a solid surface. Depending on the height of the manhole, there are three different T-base options available. The T-bases are also height adjustable. To exceed a 90° angle during rescue operations, the use of a rescue slider can increase efficiency and comfort for the victim.
SRL / Winch Compatibility
The IN-8008 is compatible with various winches, including the Xtirpa™ winch IN-2477. Several mounting brackets are available for a wide range of SRLs.
Quick, Intuitive Installation

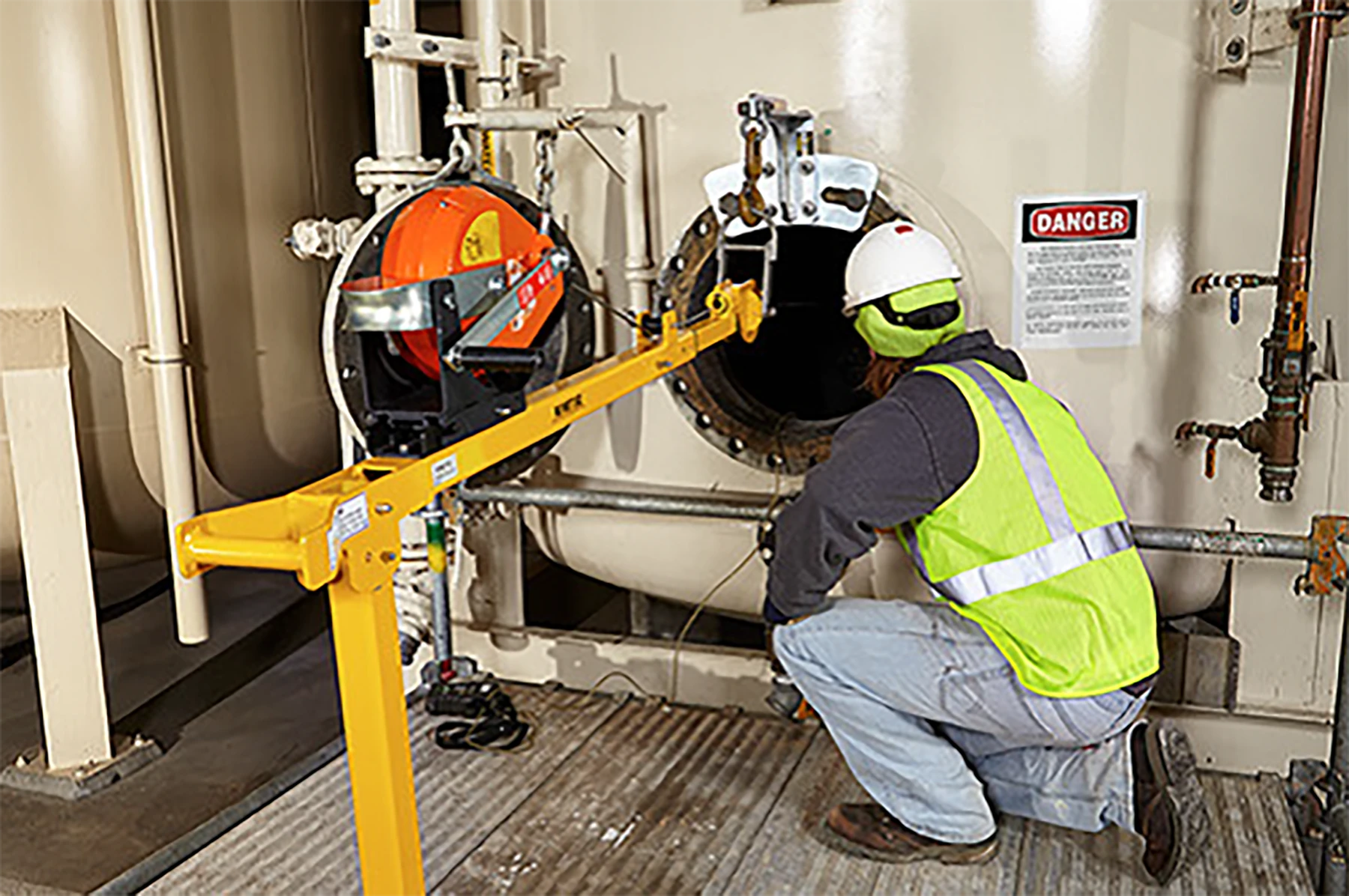

Installation by a single operator in just a few minutes: the T-base is secured to the hoist mount and then attached to a mobile anchor point or structural support. Perfect for changing locations or frequent work situations requiring flexibility.
Standards
ANSI Z359.1
AS/NZS 5532
CSA Z259.2.1
OSHA 1910.66
EN795 – Type A
TS 16415
Material
Aluminium
Safe working load
164kg
Adjustable height (120°)
IN-2337 / IN-2127: 1644 up to 2127 mm
IN-2337 / IN-2256: 1919 up to 2142 mm
IN-2337 / IN-2274: 1057 up to 1327 mm
IN-2338 / IN-2127: 1785 up to 2549 mm
IN-2338 / IN-2256: 2069 up to 3240 mm
IN-2338 / IN-2274: 1202 up to 1662 mm
Weight
Telescopic arm (IN-2337): 9kg

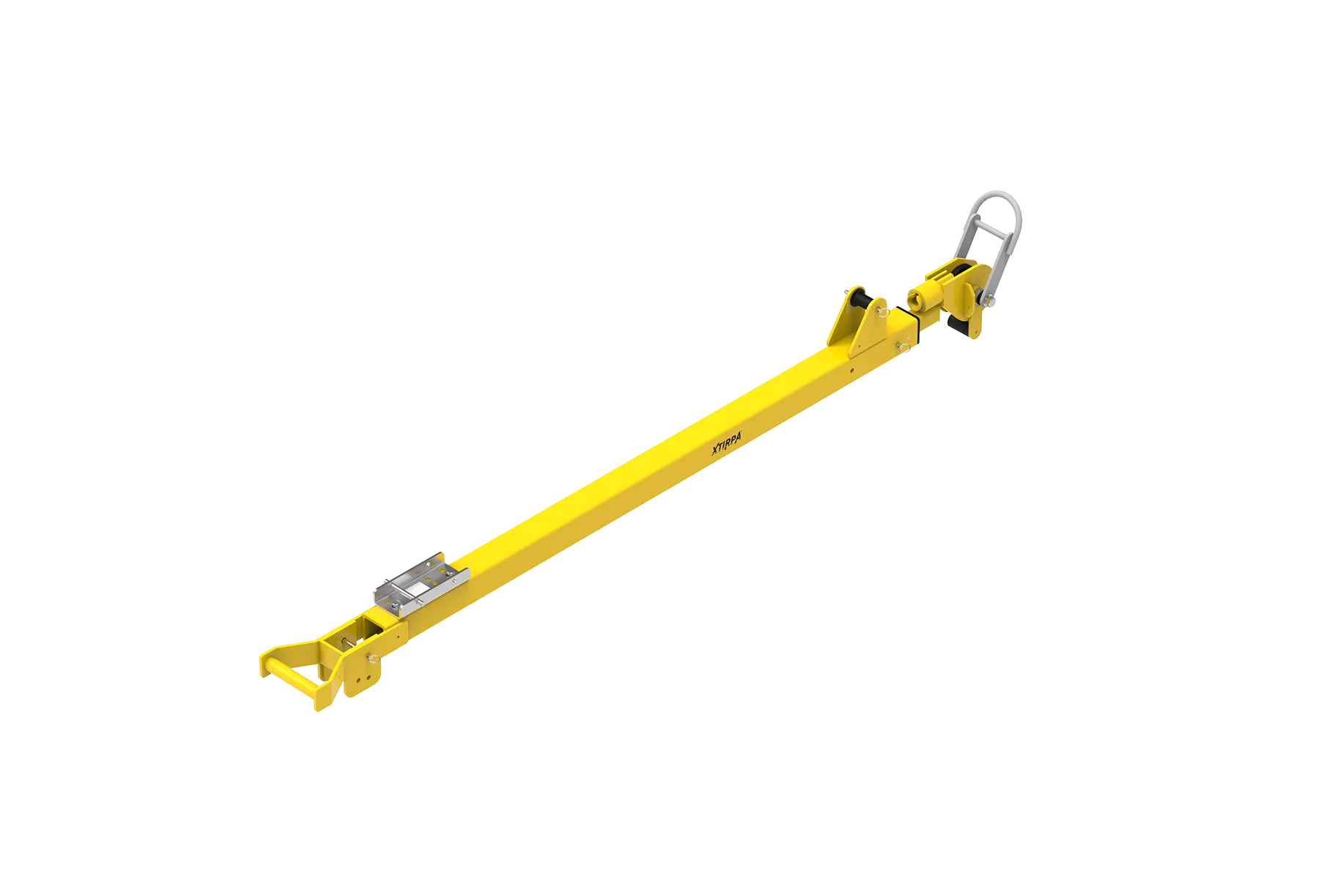

Telescopic arm (IN-2338): 13kg

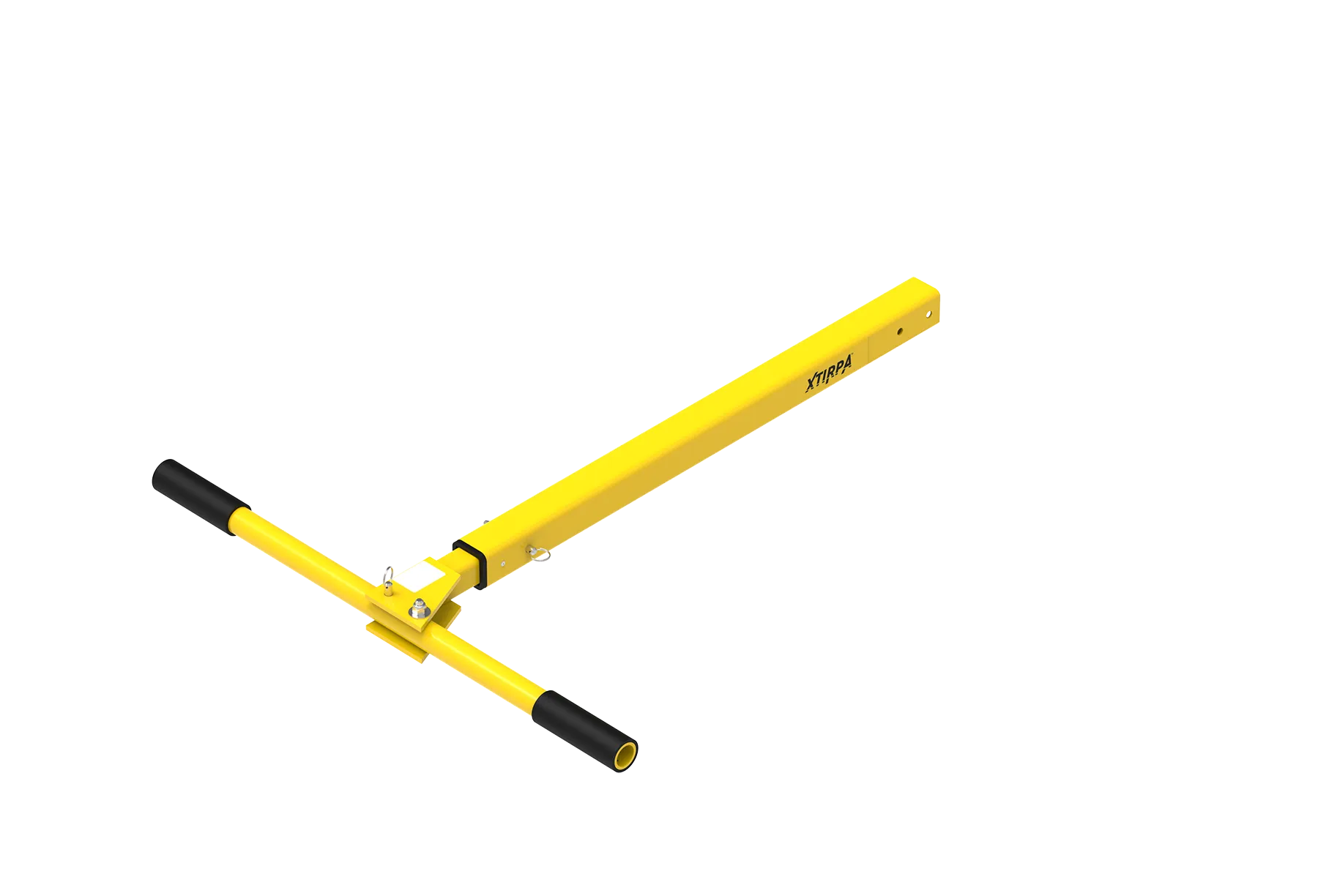

T-leg (IN-2127): 4kg

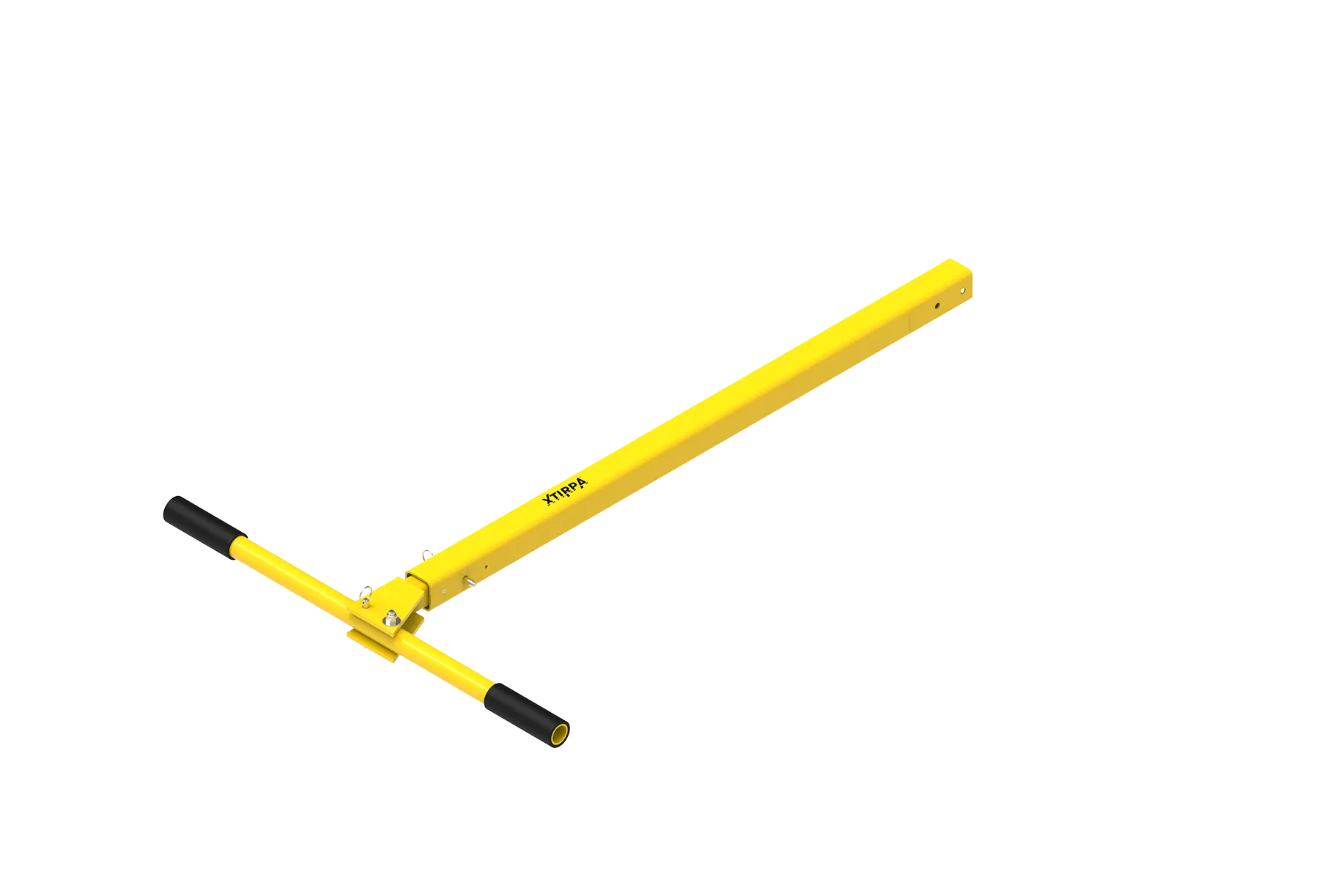

T-leg (IN-2256): 4kg

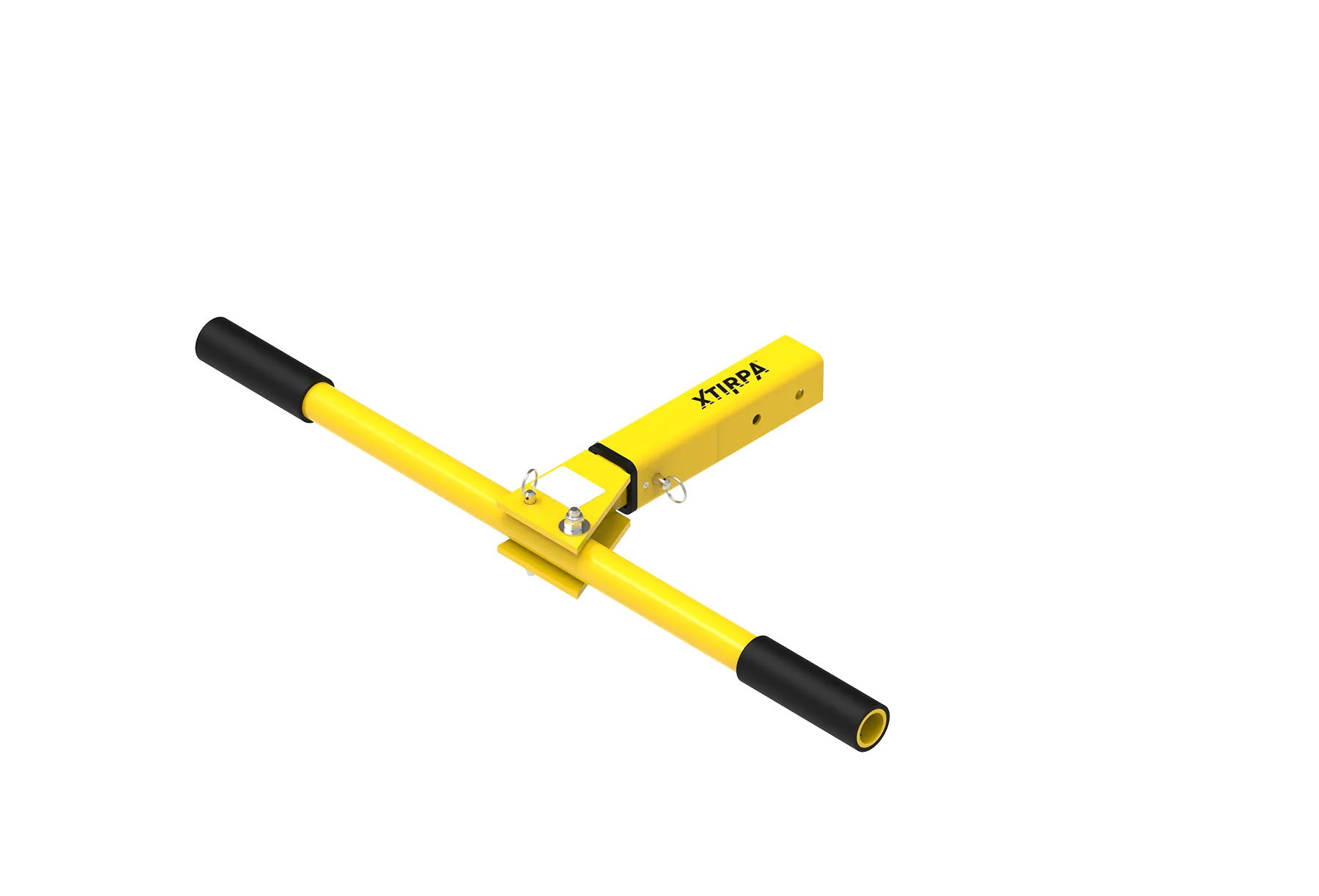

T-leg (IN-2274): 2kg
