The only mobile manhole entry ring on the market that can accommodate a short stem arm.
Complies with ANSI, OSHA, EN 795, and CEN/TS 16415 standards.
The same davit arm can be used in other configurations.
One person can install the system without tools in just a few minutes.
Unique configuration

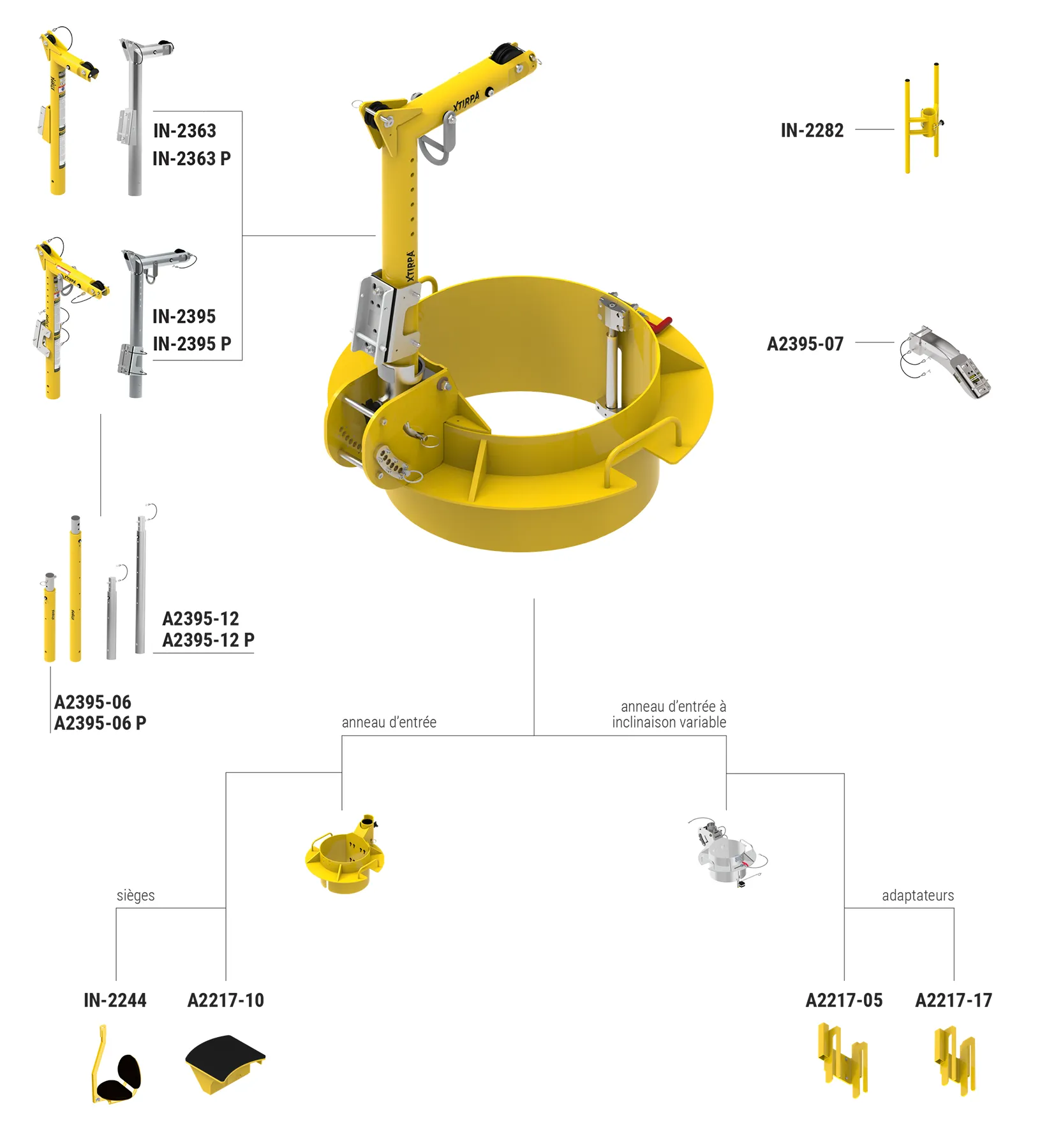

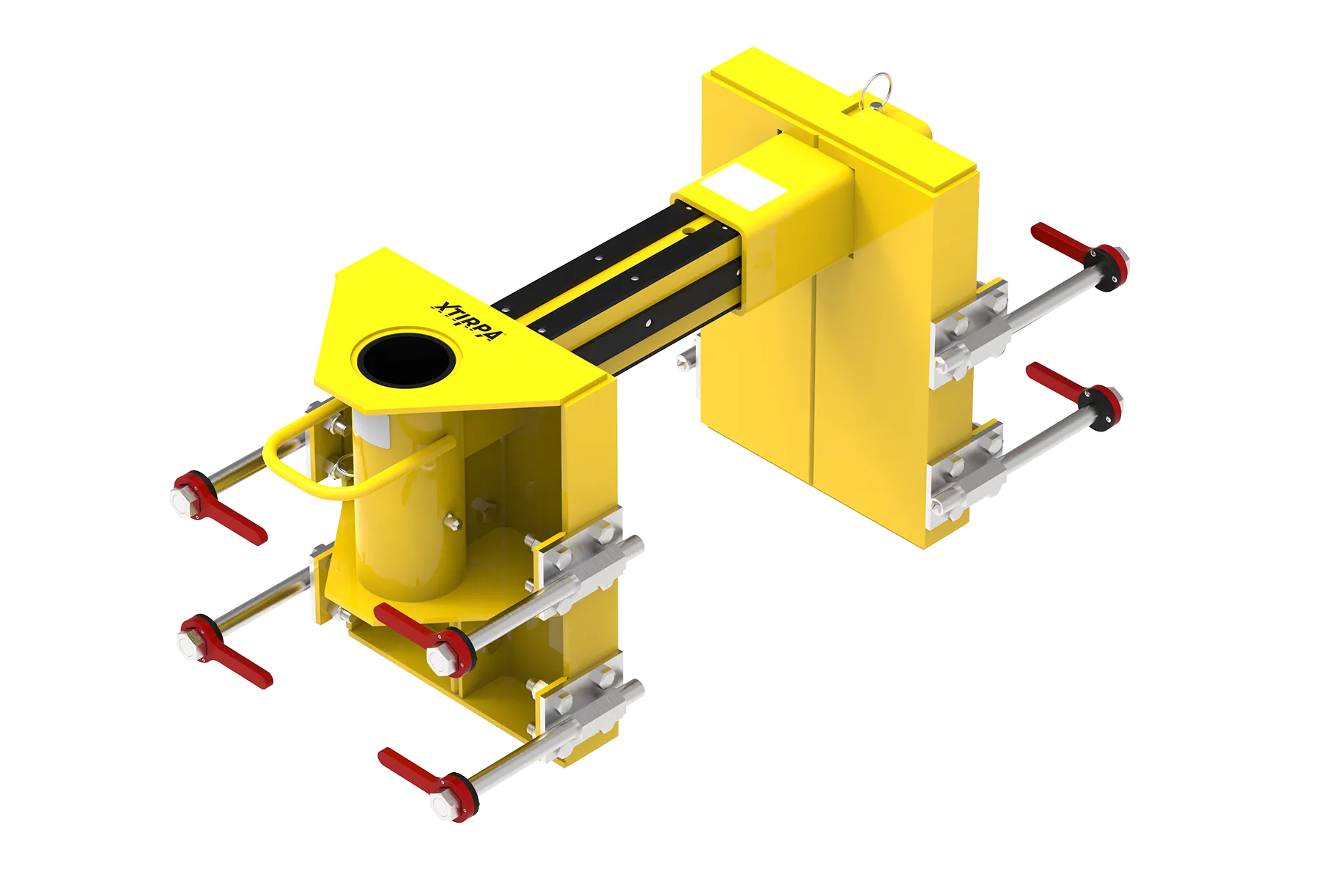

The IN-8014 system from Xtirpa™ combines various accessories with an IN-2395 short jib arm. Thanks to its ingenious design, the IN-8014 can be mounted directly, without drilling, on various types of steel or concrete walls or surfaces. This flexibility makes it ideal for temporary work where structural anchoring is not possible or desired. Ideal for tanks in spaces with limited ceiling height

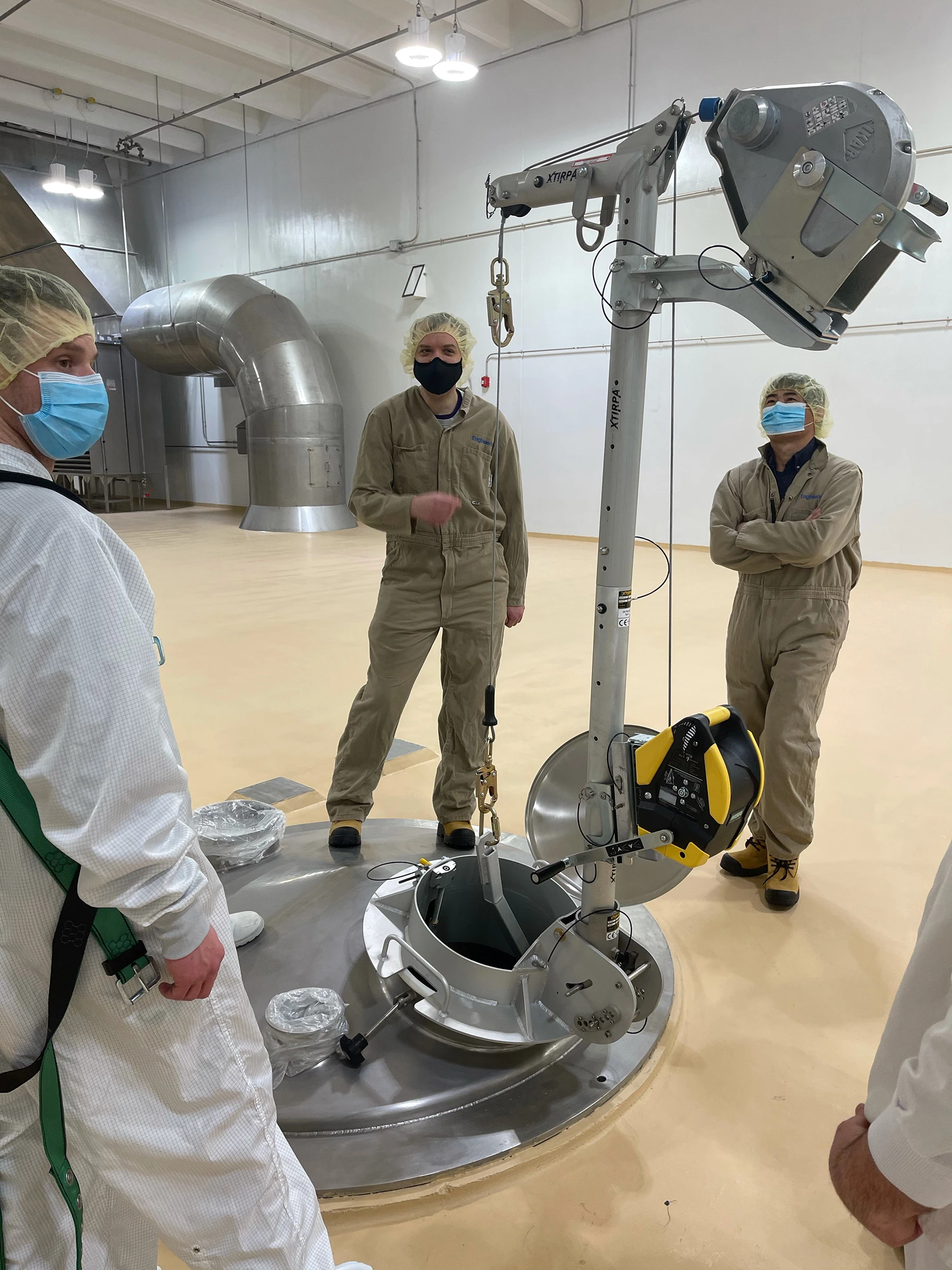

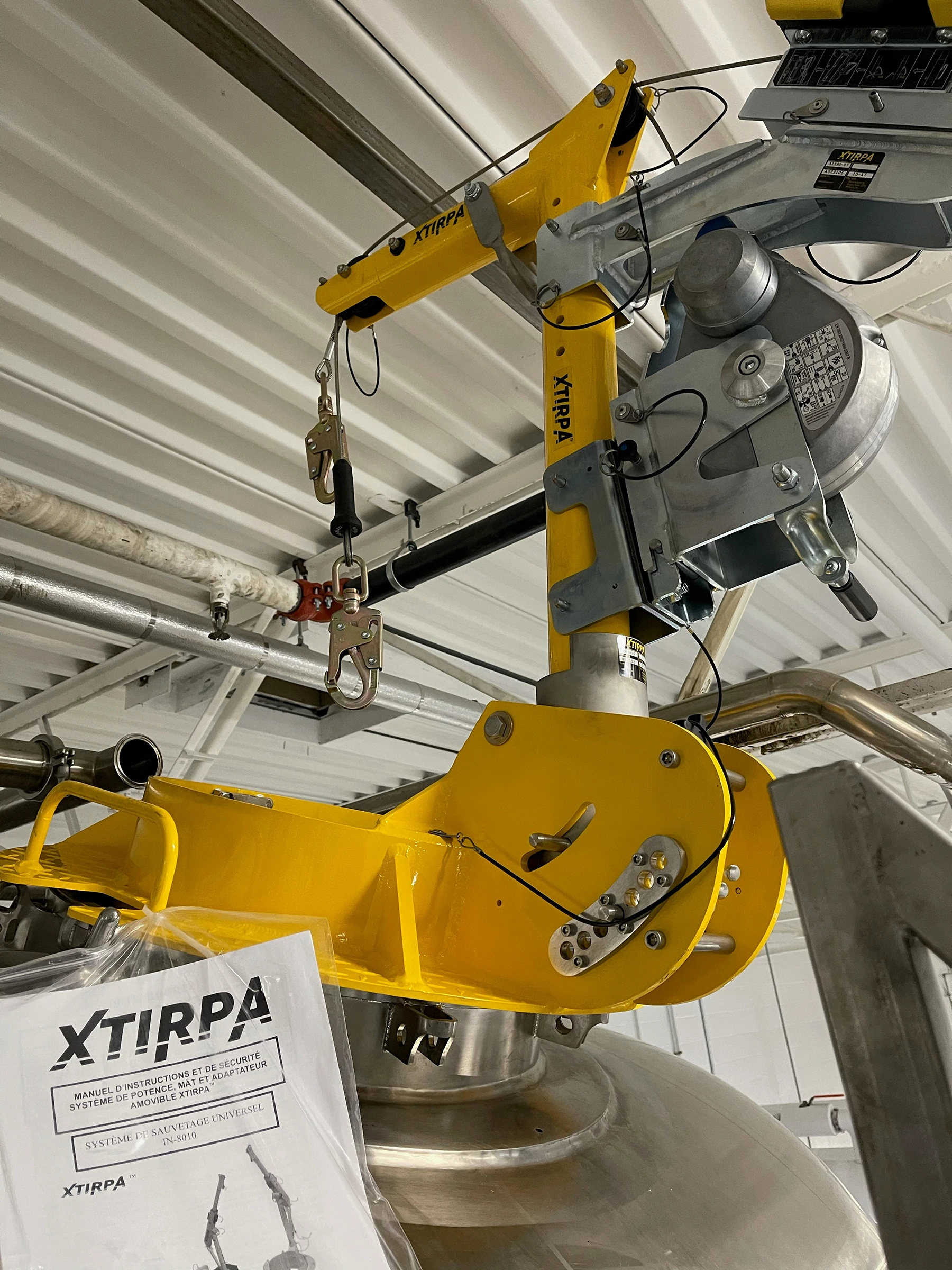

The movable entry ring provides an anchoring point on a circular manhole of a tank, particularly useful when the environment around the manhole is irregular or restricted. The tilting ring can be used on manholes positioned at an angle to the tank.
Fixed or tilting collar adapter
The short stem arm is ideal for manholes from 500 to 700mm.
Strong Anchor Point for 2 Persons
The access system is designed for a safe working load of up to 164 kg and has a minimum breaking strength of 16 kN, in compliance with EN, OSHA, ANSI and CSA standards. The system is certified for a maximum of two people in accordance with CEN/TS 16415. The steel D-anchor on the short jib arm has a breaking strength of 22 kN.
SRL / Winch Compatibilit

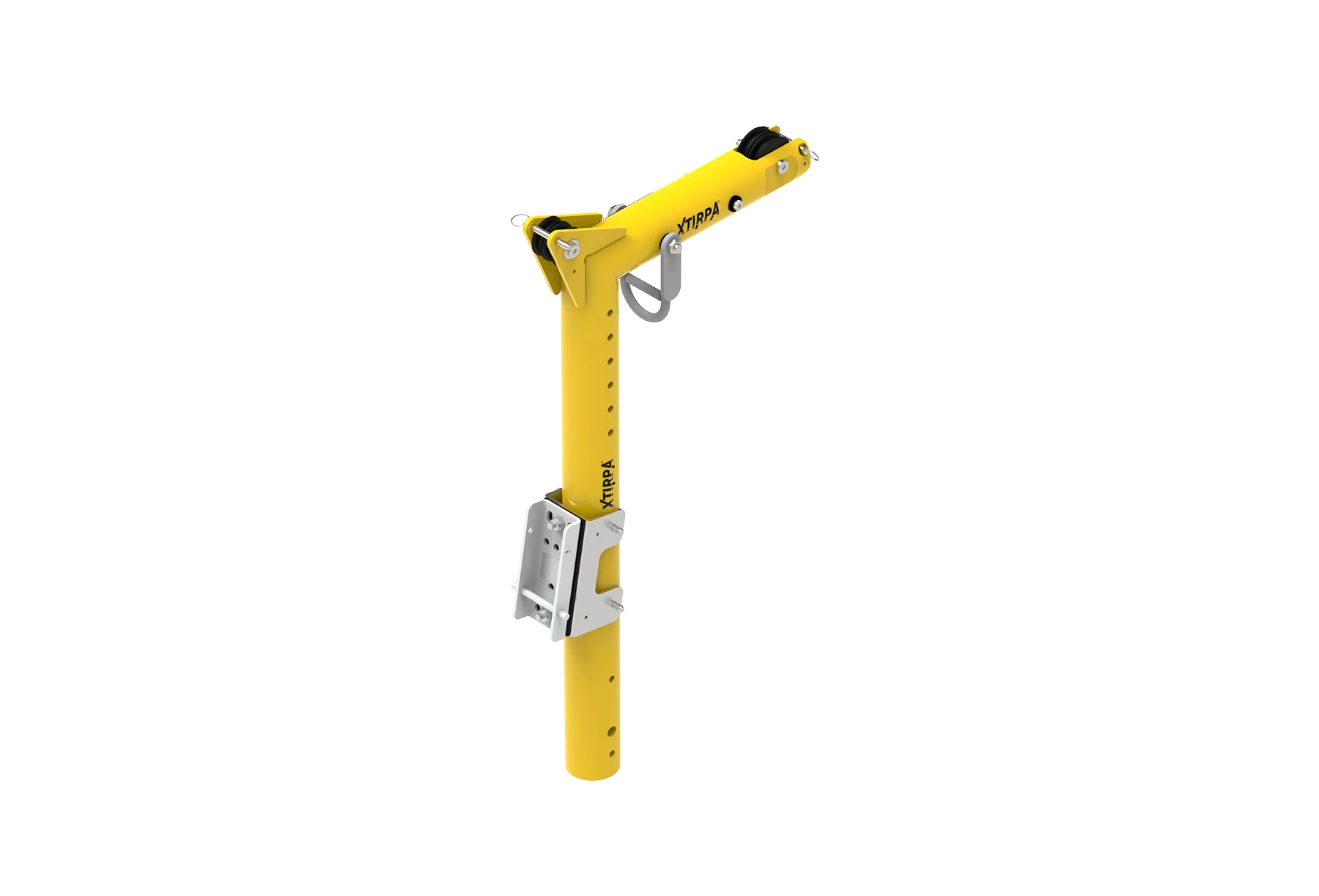

The IN-2395 stem arm is compatible with several winches, including the Xtirpa™ IN-2477 winch, which can be attached to the arm using a dedicated bracket. Several mounting brackets are available for different brands of SRL.
Expandable with Other Xtirpa™ Davit Arms
The IN-8014 system is designed to accommodate different types of Xtirpa™ jib arms, depending on specific on-site requirements.
Fast Installation and Intuitive Operation
One of the great advantages of the IN-8014 is its ability to be quickly installed by a single person. The adapter is manually placed on the wall or in the manhole, then secured with ergonomic, sturdy clamping screws. No tools are required for installation or removal (depending on model). The inlet ring can be locked with an anti-tilt system.
Standards
ANSI Z359.1
AS/NZS 5532
CSA Z259.2.1
OSHA 1910.66
EN795 – Type B
TS 16415
Material
Aluminum or anodized
Safe working load
164kg
Height of mast and extensions
Mast (IN-2395): 920 mm

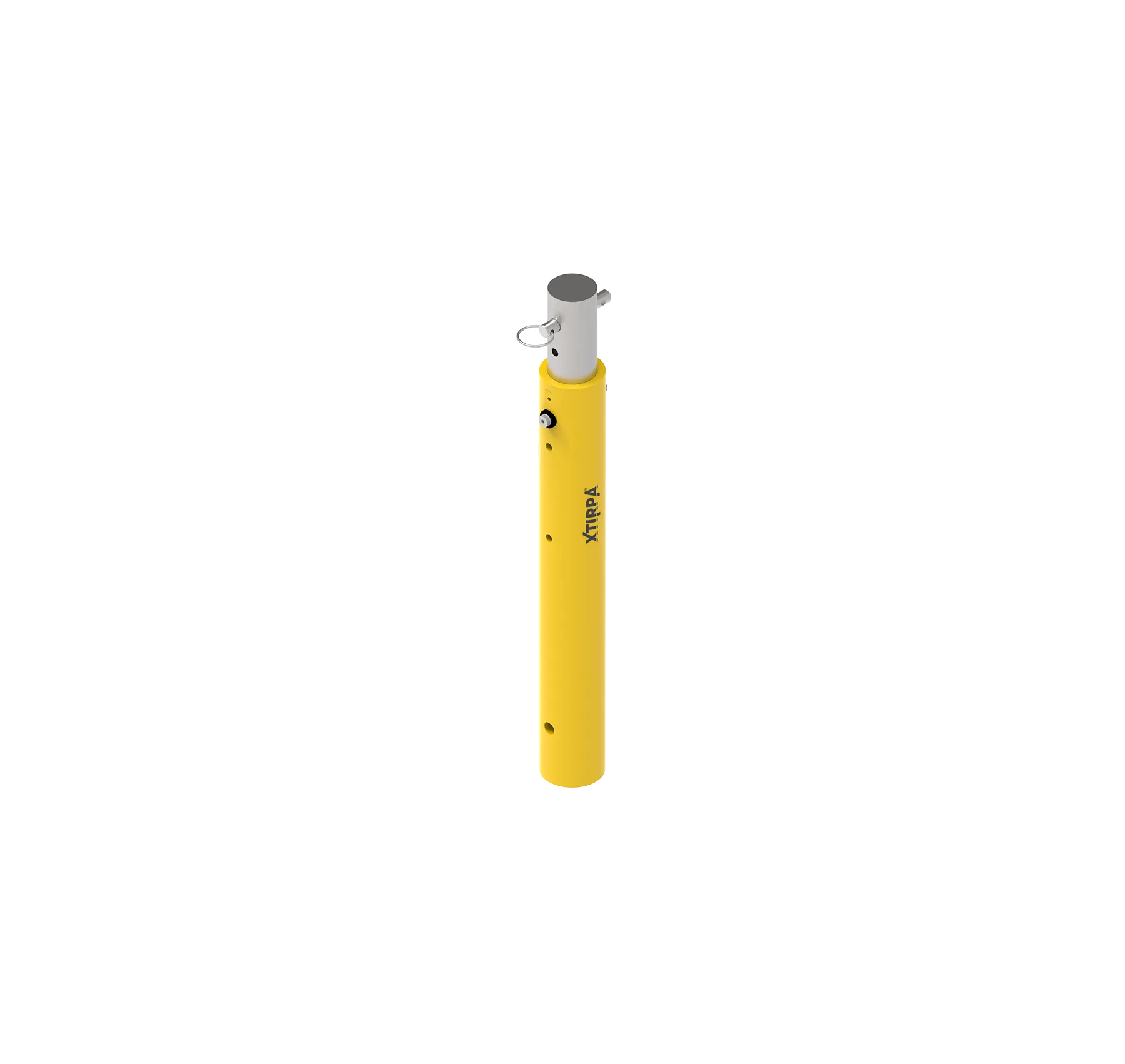

Mast + extension (IN-2395 + A2395-06): 1487 mm

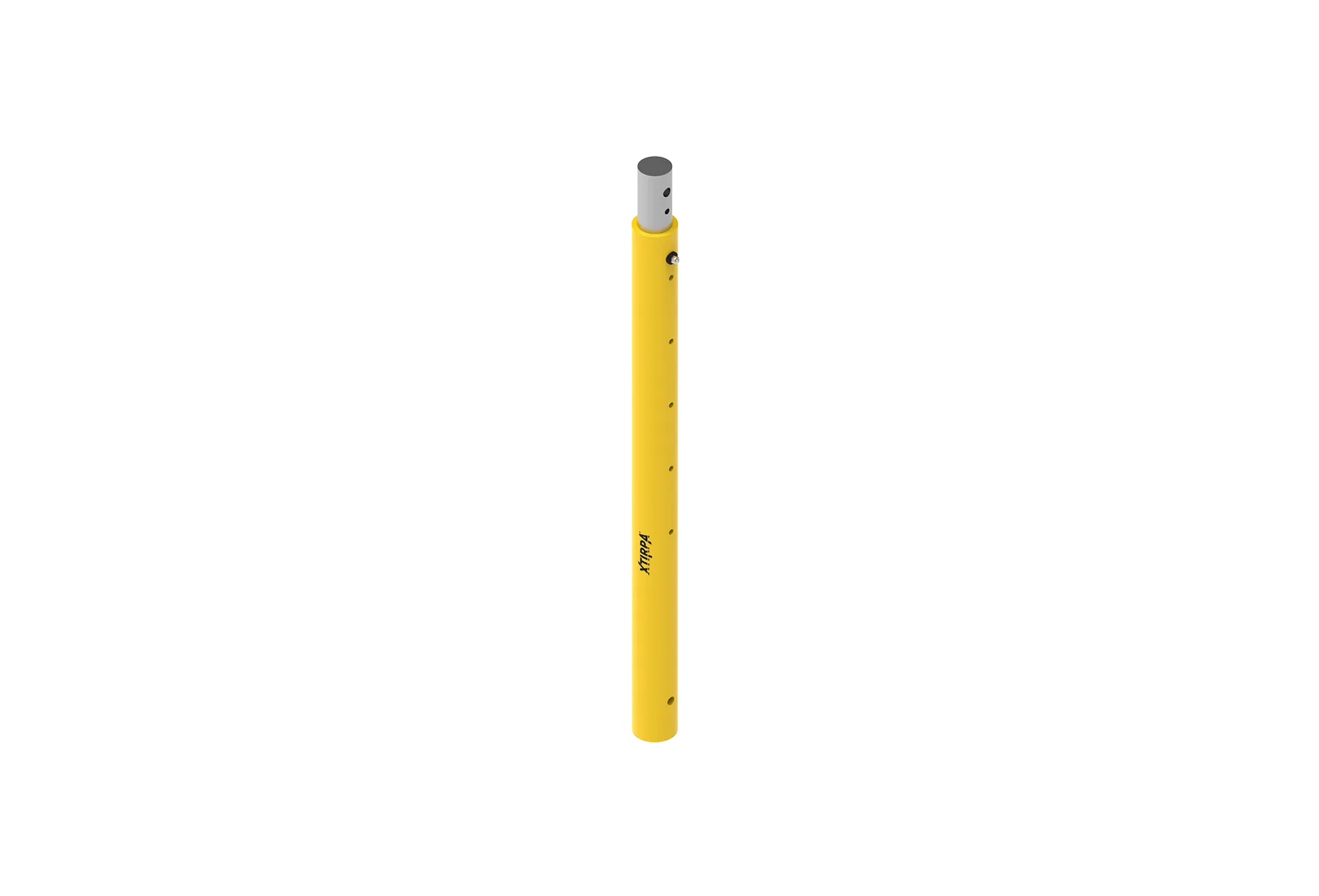

Mast + extension (IN-2395 + A2395-12): 1940 mm
Weight
Stem arm: 10.4kg
Mast extension A2395-06: 4.5kg
Mast extensionA2395-12: 7.3kg
